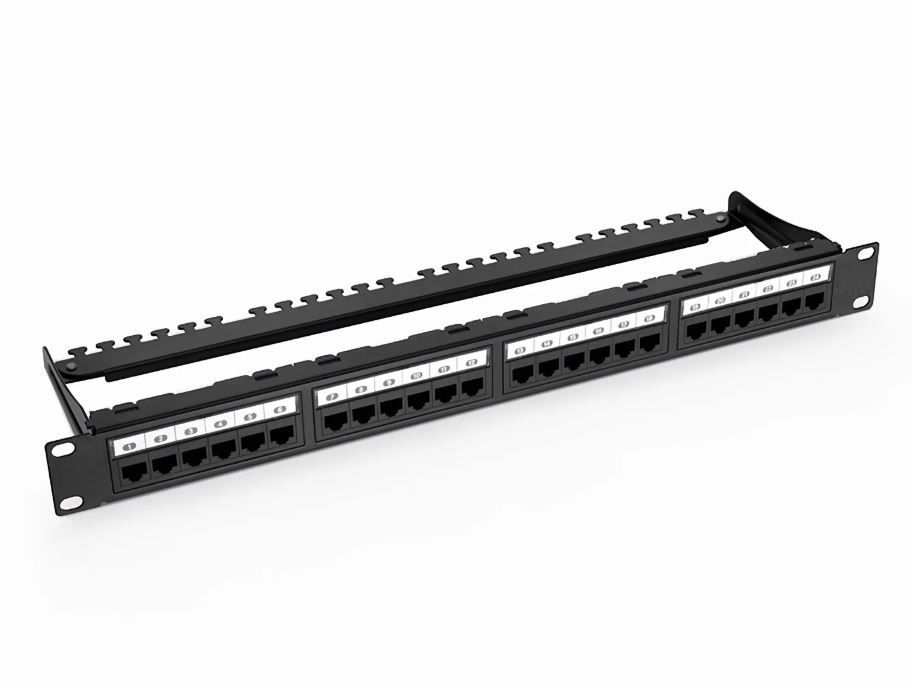

Universal Terminal Rack mount Patch Panel 1RU Cat5E 24 port STKPPC524

Universal Terminal Rack mount Patch Panel 1RU Cat5E 24 port STKPPC524

Stronglink's Category 5e Unscreened Patch Panels

Stronglink's Category 5e unscreened patch panels provide high quality and performance standards at an economical price. These panels are designed for high-speed voice and data applications, exceeding all ANSI/TIA/EIA 568B, ISO/IEC 11801, and AS/NZS 3080 Standards requirements.

The IDC connectors are colour coded for use in either T568A or T568B wiring configurations, and a Krone tool or 110 style impact tool can be used for termination. The patch panel can be used together with Category 5e cables and accessories to construct a link or channel with Category 5e/Class D performance.

Features & Advantages

• High quality at an economical price
• Standard 19" mounting
• Cage nuts included
• Gloss black metal finish
• Available in 16, 24 & 32 port unscreened configurations
• Writing area for port identification
• Colour coded for T568A/B termination
• Suitable for Category 5e/Class D links and channels
• Fully Standards and ACA compliant
• UL certified Cat 5e performance

Performance

• AS/NZS 3080:2003
• AS/ACIF S008:2001
• ISO/IEC 11801:2002
• ANSI/TIA/EIA-568-B.2

Approvals

• UL Certified Category 5e
• ACA Compliant (N476)

Technical Specifications

Mechanical

• Jack insertion durability: ≥ 750 mating cycles
• IDC block durability: ≥ 200 termination cycles

Electrical

• Voltage rating: ≥ 150 VAC
• Current rating: ≥ 1.5 A
• Dielectric withstanding voltage: ≥ 1 KV

Physical

• Jack housing and IDC block: Polyphenylene oxide, UL94V-0
• RJ45, 8-position connector: Meets FCC part 68 and IEC 603-7
• Connector wiring: Plating 50µ inches gold over nickel
• IDC wire range: Solid or stranded, 22–26 AWG, 0.64 mm² - 0.4 mm²
• Operating temperature range: -10°C to 60°C

Supported Applications

• ISDN: Basic & Primary Access
• Token Ring: 4/16/100 Mbps
• ATM: 25/52/155 Mbps
• Ethernet: 10BASE-T
• Fast Ethernet: 100BASE-TX/T2/T4
• Gigabit Ethernet: 1000BASE-T
