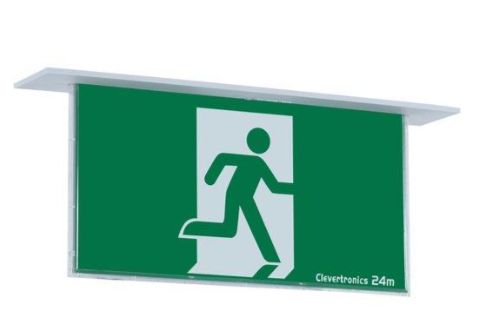

ULTRABLADE PRO Recessed Exit Light CUBPRO-HV

ULTRABLADE PRO Recessed Exit Light CUBPRO-HV

Note- Box little bit damage Clearance product non-refundable

The sophisticated look and design of the Ultrablade PRO will satisfy all architectural requirements for a premium recessed exit. With its low profile design, only 80mm of ceiling space is required during installation, combine this with a reduced reflection and halo effect on the diffuser and a decal that is scratch and fingerprint resistant. It is no wonder the Ultrablade PRO is the industry standard for an architectural blade exit.

Specification -

Catalogue Number CUBPRO-HV
MIC AUA02810020002
Description LP Premium Ultrablade Pro Blade Recessed Exit
Construction PC/ABS Body with PC Diffuser
Mounting Recessed ceiling
Dimensions L x W x H 317mm x 157mm x 8.7mm (Blade Assembly)
385mm x 67mm (Cover Plate)
Ceiling Hole Cut-Out 350mm x 48mm
Minimum Ceiling Depth 80mm
Weight 1.1kg
Operating Mode Maintained
Testing System Zoneworks XT HIVE (RF)
Battery Lithium Iron Phosphate 3.2V 1100mAh
Charging Method Intelligent current limited constant voltage
Diffuser All pictograph directional inserts included in the box
Lamp (s) 12 x Duris E3 LED, 100,000 hours
Operating Voltage 240V AC; 50Hz
Power Consumption 2.8 Watts (Standby), 4.2 Watts (Max)
IP Rating IP20
Operating Temperature 1˚C to 40˚C
AS2293 Classification C0=E6.3 C90=E6.3
Viewing Distance 24M
Applicable Standards AS/NZS3820, CISPR15, AS/NZS2293.3
