ST758 Microwave Sensor Add on Type Black

ST758 Microwave Sensor Add on Type Black

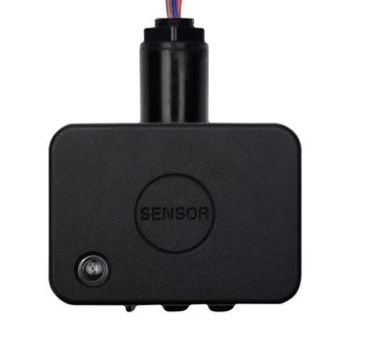

CROWN LIGHTING 180° Degrees Microwave Motion Sensor

The Crown microwave motion sensor is a new energy-saving switch; it adopts a microwave sensor with a high-frequency electromagnetic wave (5.8GHz), integrated circuit. It gathers automatism, convenience, safety, saving energy, and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and automatically identify day or night. Its installation is very convenient, and its use is very wide. Detection is possible through thin doors, panels of glass, or thin light walls.

Specification

Colour: Black

Power Source: 110-240V/AC

Power Frequency: 50/60Hz

Ambient Light: <3-2000LUX (adjustable)

Time Delay: Min. 10sec+-3sec

Max. 12min+-1min

Rated Load: Max. 100W(110-130V/AC)

200W(220-240V/AC)

Detection Motion Speed: 0.6-1.5m/s

Detection Range: 180°

Detection Distance: 5-15m (adjustable)

HF System: 5.8GHz CW radar, ISM band

Transmission Power: <0.2mW

Installing Height: 1.5-3.5m

Power Consumption: Approx 0.9W

IP Rating: IP65
