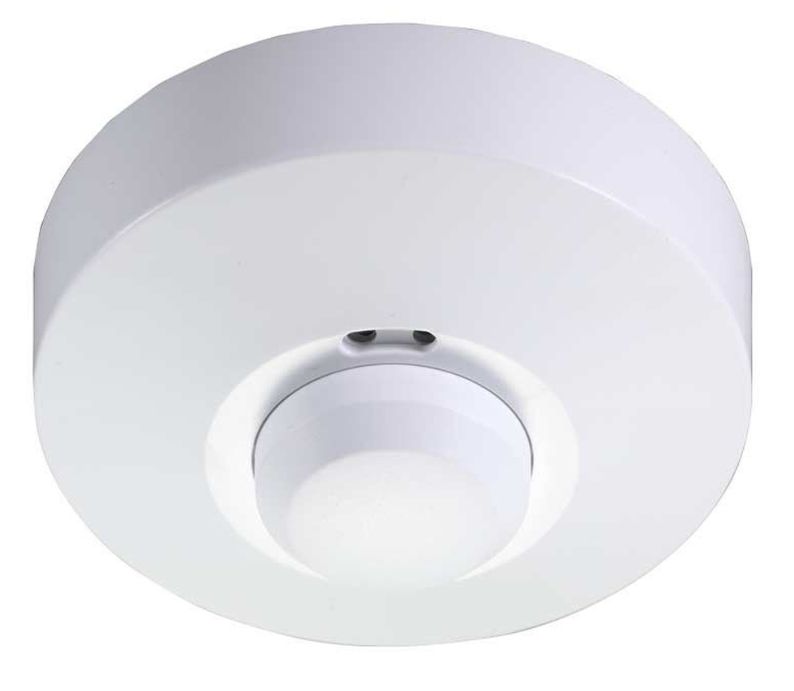

ST700 MICROWAVE CEILING MOUNT SURFACE SENSOR 360 DEG

ST700 MICROWAVE CEILING MOUNT SURFACE SENSOR 360 DEG

Crown Microwave Movement Activated Sensor features 360 degree detection angle and up to 8 metre radius detection range. Has An in-built on-time timer and, daylight level controls prevent daytime operation, while a manual override facility ensures proper operation at all times of the day or night.

High energy saving properties. It adopts microwave sensor mould with high frequency electro magnetic waves (5.8GHz) and integrated circuit. It gathers automatism, convenience, safety, energy saving and practical functions.

It works by receiving motion when one enters the detection field it can distinguish between day and night and operate accordingly.

Detection field can go through some doors, glass and thin walls.

Sensibility and time delay adjustable.

Specification

Power Source: 220-240V/AC

Power Frequency: 50/60Hz

Ambient Light: <3-2000LUX (adjustable)

Time Delay: Min. 10sec+-3sec

Max. 12min+-1min

Rated Load: 1200W

300W

Detection Range: 360°

Detection Distance: 1-8m (radius), adjustable

HF System: 5.8GHz CW radar, ISM band

Transmission Power: <0.2mW

Installing Height: 1.5-3.5m

Power Consumption: Approx 0.9W

Detection Motion Speed: 0.6-1.5m/s

IP Rating: IP20
