RCD/MCB 8KA 10A 30mA MECHANICAL RCBM210/30 - CLEARANCE PRODUCT

RCD/MCB 8KA 10A 30mA MECHANICAL RCBM210/30 - CLEARANCE PRODUCT

TWO POLE COMBINE RCD/MCB 10A 30MA

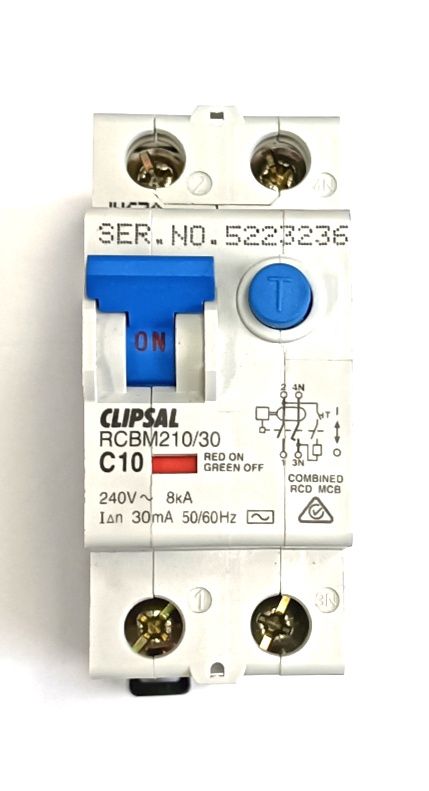

The Clipsal RCBM210/30 is rated at 8KA. Cleverly designed with trip indication. The two pole module RCBO includes individual trip indication for both RCD and MCB faults. It is a mechanical combination RCBO. Switches both active and neutral cables.

The 2 pole RCBO widely used to protect domestic and commercial installations. Combo busbars and accessories are available to simplify installation. Line or load cables can be installed either top or bottom to make for an easy install.

Features:

Residual current breaker with overcurrent protection (RCBO)
Product brand: Clipsal
Poles description: 1P + N
Neutral position: Right
Number of modules: 2
Number of protected poles: 1
[In] rated current: 10 A
Network type: AC
Trip unit technology: Thermal-magnetic
Curve: C
Earth-leakage sensitivity: 30 mA
Breaking capacity: 8 kA Top and bottom, line and load compatible
Narrow module design, allows for more RCDs/MCBs to be installed in the one enclosure
Two pole safety feature allows switching of both active and neutral contacts
Trip free locking device (lockable in 'ON' or 'OFF' position)
Compatible with Clipsal switchboards and switchboard accessories
