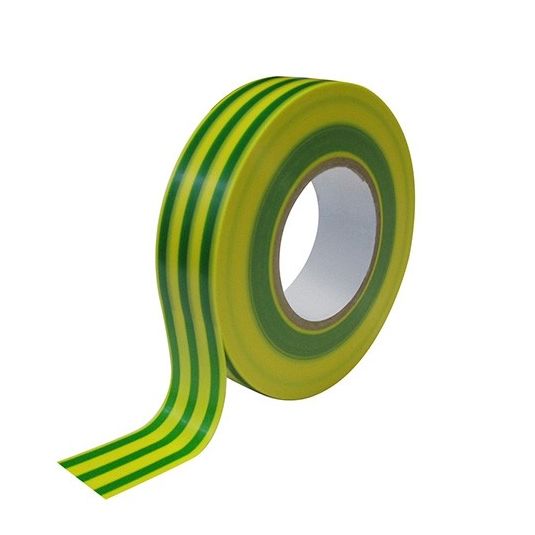

PVC tape Earth Green/YELLOW Electrical Insulation tape PVCYG

PVC tape Earth Green/YELLOW Electrical Insulation tape PVCYG

Product Description

PVC Insulation Tape is a standard grade electrical tape with a thickness of 0.135mm, designed for reliable insulation, identification, and harnessing in various electrical and industrial settings. Rated up to 600V, this tape offers:

• Durable elasticity
• Strong adhesion
• Resistance to flame, weather, oil, and acids

It operates effectively within a temperature range of 0 to 90°C.

Specifications

• Material Composition: PVC
• Thickness: 0.135 mm
• Adhesive Type: Rubber
• Adhesion Strength: >0.32 kg/19mm
• Elongation: >150%
• Dielectric Strength: 40 kv/mm
• Tensile Strength: >4.7 kg/25mm
• Flame Retardant: Yes
• Resistant to: Weather, oil, and acid
• Operating Temperature: 0 to 90°C

Applications

• Identification and Coding: Marks and codes electrical components for easy identification.
• Harnessing: Bundles and secures wires and cables within electrical systems.
• General Wire Wrapping: Provides a secure, protective, and durable wrap for wires.
• Basic Insulation: Ensures safe insulation for electrical connections and components.

Usage Instructions

• Surface Preparation: Ensure the application surface is clean, dry, and free from grease or dust.
• Application: Apply the tape by wrapping it evenly with sufficient tension to avoid wrinkles or looseness.
• Storage Conditions: Keep in a cool, dry place away from direct sunlight.
