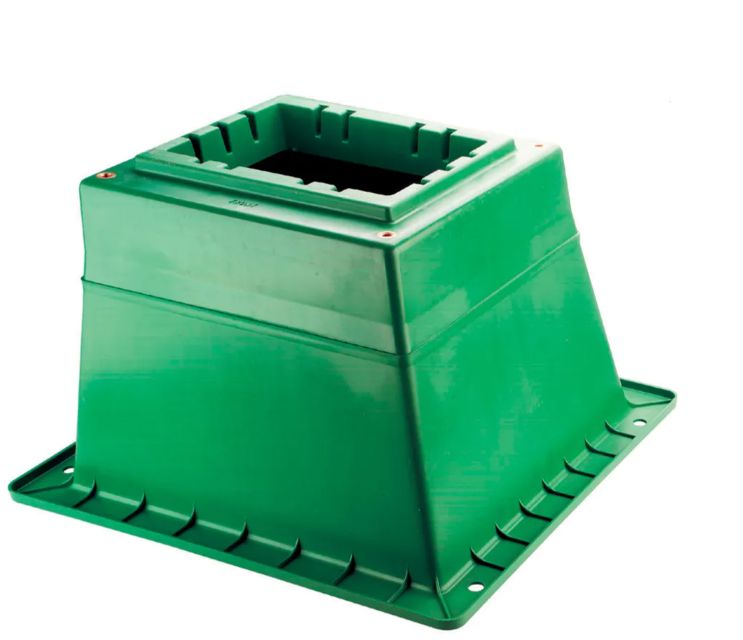

PILLAR BASE WITH BOTTON BOLT AND KIT GREEN PBB-G-IM-BBK

PILLAR BASE WITH BOTTON BOLT AND KIT GREEN PBB-G-IM-BBK

BASE ONLY

• Pillar Base with Button Bolts Kit - Green
• Ausgrid material code: 90993

  The CABAC Pillar Box Base is an all-purpose moulded plastic base to suit direct burial or slab mounting. The base can be directly buried, or bolted to a slab. For high stability on steep slopes or unstable soils the base can be attached to a steel framework and stabilised soil/concrete poured around the base.

  Pillar Box Base Features
  • The base is light for ease of handling, transport and storage
  • Slots for four standard fuse panels or one large panel
  • Wide skirt for increased stability
  • Upturned skirt lip increases resistance to pull out - dosing effect
  • Flat bottom for slab mounting – dyna holes included
  • Corrosion-proof brass inserts for cover bolts
  • Wall design allows drilling for side entry
  • Able to be stacked to reduce storage costs
  • A datum line is provided to indicate the burial depth

  Technical Data
• Material Polypropylene copolymer resin
• Flame Retardant to 750°C min (AS2420 App B)
• Wall Thickness 4mm min
• Yield Tensile Strength24 MPa min 270kg/cm2 26.5MPa
• Vicat Softening Point150°C (ASTM1526)
• Izod Notch Impact 500 J/m min (ASTM D256)
• Melt Flow Index1.5 g/10 min (ASTM1238 Condition E)
• IP Rating IP44 (Attached to CABAC base)
