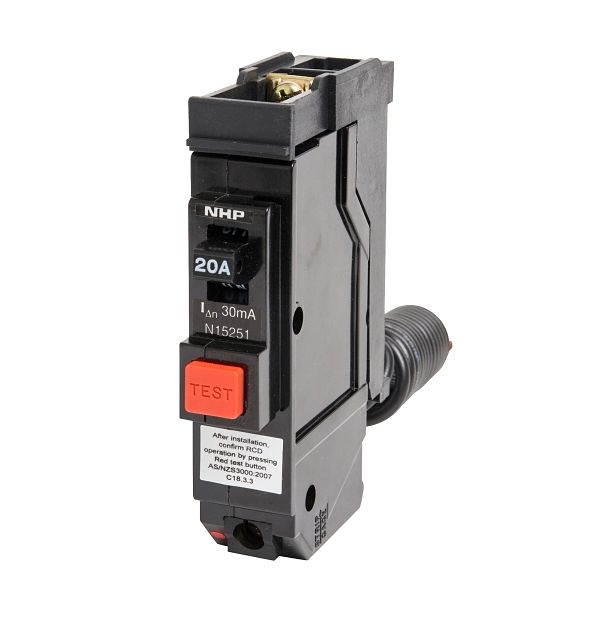

NHP Terasaki SAFE-T 20A RCBO Residual Current Device 1 pole SRCB2030
SKU NHP-SRCB2030
$163.62
On Sale
was $263.62 Save $100.00
In stock
1
Save this product for later
NHP Terasaki SAFE-T 20A RCBO Residual Current Device 1 pole SRCB2030
Product Details
Brand: NHP
Weight: 0.29 kg
NHP Terasaki SAFE-T 20A RCBO Residual Current Device 1 pole SRCB2030
SRCB Units Features
SRCB units offer overload, short-circuit, and earth leakage protection in a single pole unit:
- Overload protection is available in 10 A, 16 A, and 20 A.
- Short-circuit protection is to a level of 6 kA.
- Earth leakage protection is provided by the built-in electronic core-balance device, available in 10 mA and 30 mA sensitivity.
Application
SRCB units are suitable for use in single phase general light and power distribution boards.
- The mounting method is identical to the Safe-T miniature breakers, utilising the clip-tray system.
- SRCB can be fitted into TLC loadcenters, CST and CPS panelboards.
- Use of adaptor feet fitted to the SRCB allows them to be retrofitted into Heinemann or Eaton (Quicklag) panelboards.
