Narrow Palm Circuit Breaker Copper Lug suits to 95mm² cable, 12mm stud CALCB95-12 NPL95-12

Narrow Palm Circuit Breaker Copper Lug suits to 95mm² cable, 12mm stud CALCB95-12 NPL95-12

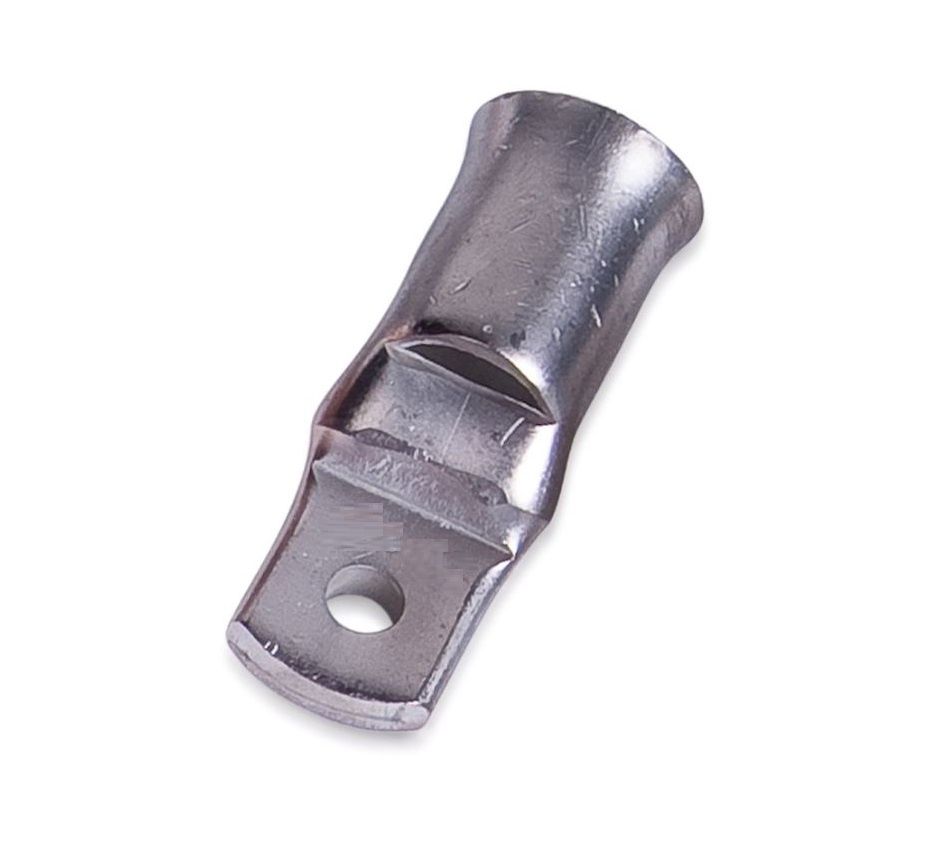

Circuit Breaker Lugs are specially designed for terminating large cables to circuit breakers. These lugs address the challenge of reduced flashover distances and narrower connecting tunnels in breakers, which make fitting conventional lugs in breakers difficult due to their wide palms.

Key Features:

• Same barrel dimensions as the standard range: Normal crimping rules apply, using the correct die for the cable size.
• Unique bell mouth design: Ideal for switchboard builders using flexible cables, as it simplifies the insertion of fine stranded conductors.
• High conductivity copper: Made from 99.9%+ cu, providing the best possible electrical properties.

Standards and Compliance:

• Standards:
  AS/NZS4325 Part 1; IEC France, DIN/VDE Germany, JIS Japan, BS United Kingdom, and UL/NEMA USA.

Technical Data:

• Nominal Conductor (mm²): 95
• ID Size (mm): 13.4
• Stud (mm): 12

Conductive Material:

• Copper: 99.95% pure
• Oxygen content: 30 p.p.m Max.
• Tensile strength: 200 MPa
• Ductile rating: 40%
• Final metal state: Fully annealed

Electroplating Material:

• Tin: 99.9% pure
• Other metals: Lead + antimony
• Thickness: 5 - 10 microns

General Electrical Properties:

• Total conductivity: 99.7% IACS
• Total resistivity: 1.738 micro-ohm cm

Operating Temperature:

• -55°C to 155°C due to oxygen-free copper.
