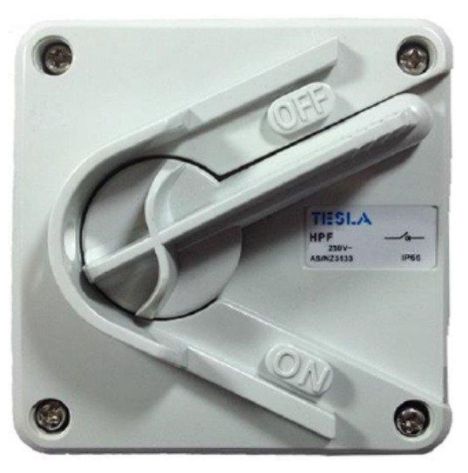

MINI WEATHERPROOF ISOLATOR SWITCH 2 POLE 32A

MINI WEATHERPROOF ISOLATOR SWITCH 2 POLE 32A

Surface Switch, weather protected, IP66, 250V in single and double pole surface mount switches in 20amp
- Weather protected Isolating Switches are suitable for any external application;
- Easily terminated and more wiring room with the base mount mechanism;
- Insulated caps that cover base mounting screws to protect from any live cables;
- Duel 25mm screwed conduit entries top and bottom with allows four ways to surfaces wire the switch;
- Each unit is supplied with screwed conduit plugs and screwed reducers for each connection to 20mm or 25mm conduits and screw caps. Screw caps must be installed to ensure IP Rating;
- For security, a hole is provided for padlocking the lever in OFF position;
- Has impact resisters base and cover which will survive the hardest knock in almost any installation;
- Ample conduit entries in the base. Two 20mm plain, one 25mm plain and one 20mm plain on each side of box as well as one 25mm rear entry for back wiring;
- Switch dimensions are: 85mm x 85mm with overall height of 84mm.
