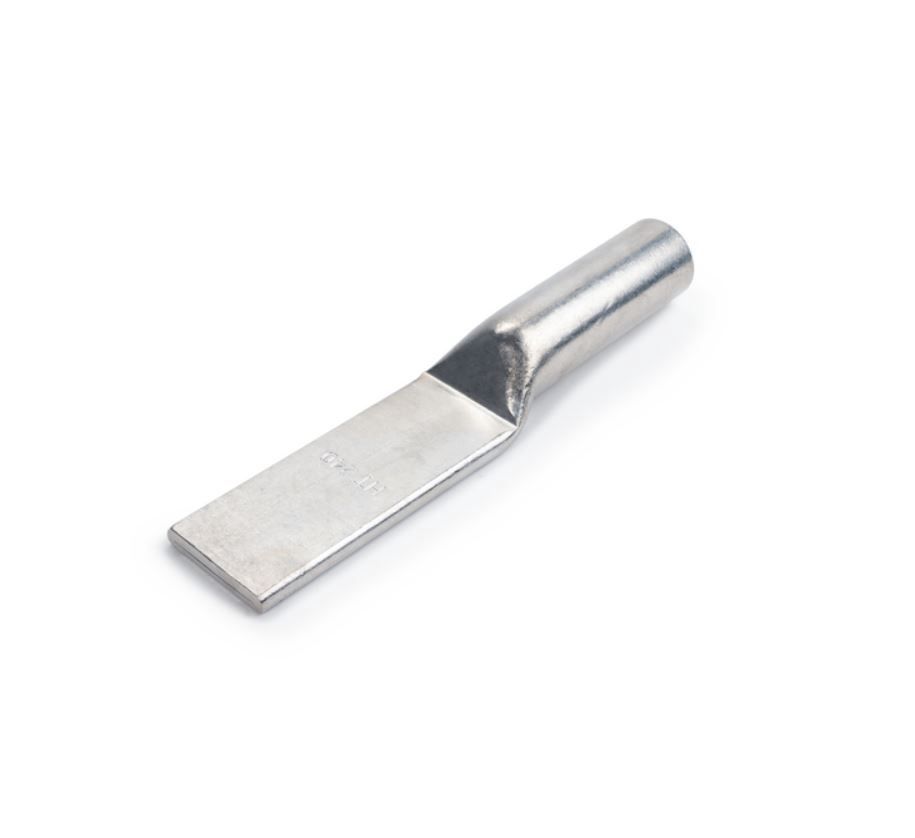

Long Palm Long Barrel Blank Copper Lug suits to 70mm² cable CAL70LPB LPLBCAL70

Long Palm Long Barrel Blank Copper Lug suits to 70mm² cable CAL70LPB LPLBCAL70

This innovative range of copper lugs has been specifically designed for use in the most hazardous and severe fault current applications. Developed in collaboration with a leading electrical distribution organisation, these lugs address the need for a more robust connector suitable for various outdoor and indoor applications.

Key Features:

• Air-tight cable applications: The lug is designed for total air-tight cable systems, with the barrel internally sealed at the palm junction.
• No inspection window: The design excludes an inspection window for enhanced functionality.
• Easy modification: Customization is simple, allowing adjustments to the palm style and type. This includes bending the palm, cropping the palm, and altering the number and size of stud holes.

Standards and Compliance:

• AS/NZS4325 Part 1

Technical Data:

Conductive Material:

• Copper: 99.95% pure
• Oxygen content: 30 p.p.m Max.
• Tensile strength: 200 MPa
• Ductile rating: 40%
• Final metal state: Fully annealed

Electroplating Material:

• Tin: 99.9% pure
• Other metals: Lead + antimony
• Thickness: 5 - 10 microns

General Electrical Properties:

• Total conductivity: 99.7% IACS
• Total resistivity: 1.738 micro-ohm cm

Sealed Palm:

• Silver solder: Minimum melt point 180°C

Operating Temperature:

• -55°C to 155°C (due to oxygen-free copper)

This product offers exceptional durability and reliability, making it an ideal choice for demanding electrical applications.
