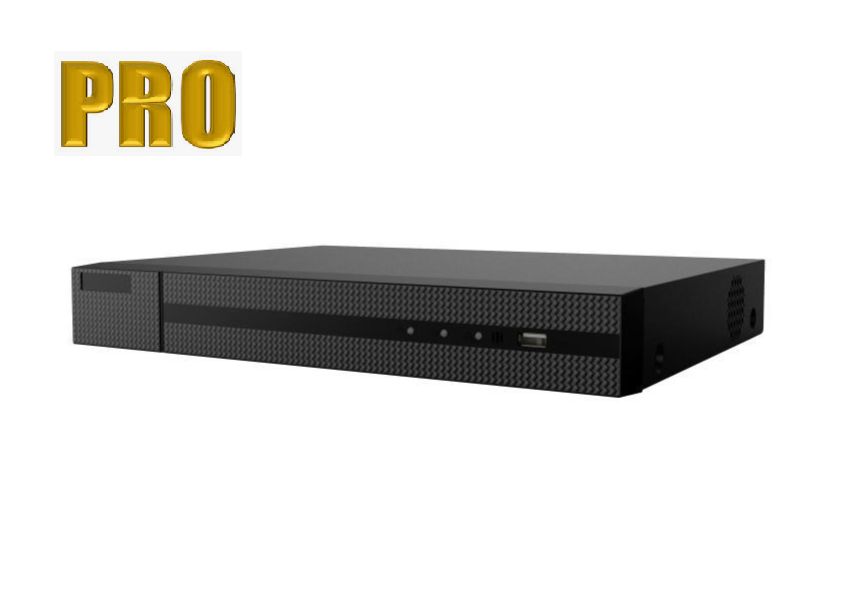

HiLook Pro 4 Channel 4K PoE Network Video Recorder NVR-104MH-K/4P-PRO

HiLook Pro 4 Channel 4K PoE Network Video Recorder NVR-104MH-K/4P-PRO

Features

• Up to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• Up to 40 Mbps incoming bandwidth
• Adopt HiLook AI technology to minimize manual effort and security costs

Intelligent Analytics

• AI By Device: Facial recognition, perimeter protection, motion detection 2.0
• AI By Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA

Facial Recognition

• Face Attributes: N/A
• Facial Detection And Analytics: Face picture comparison, human face capture, face picture search
• Face Picture Comparison (Captured From Camera): 2-ch

Motion Detection 2.0

• By Device: All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
• By Camera: All channels

Perimeter Protection

• By Device: 1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
• By Camera: All channels

Video And Audio

• IP Video Input: 4-ch
• Incoming Bandwidth: 40 Mbps
• Outgoing Bandwidth: 80 Mbps
• HDMI Output: 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode: HDMI1/VGA simultaneous output
• CVBS Output: N/A
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

• Decoding Format: H.265/H.265+/H.264+/H.264
• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 4-ch
• Decoding Capability:
  • AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
  • AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Remote Connection: 128
• API: ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ≤ 50 W
• Standard: IEEE 802.3af/at

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 10 TB capacity for each HDD
• USB Interface:
  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0
