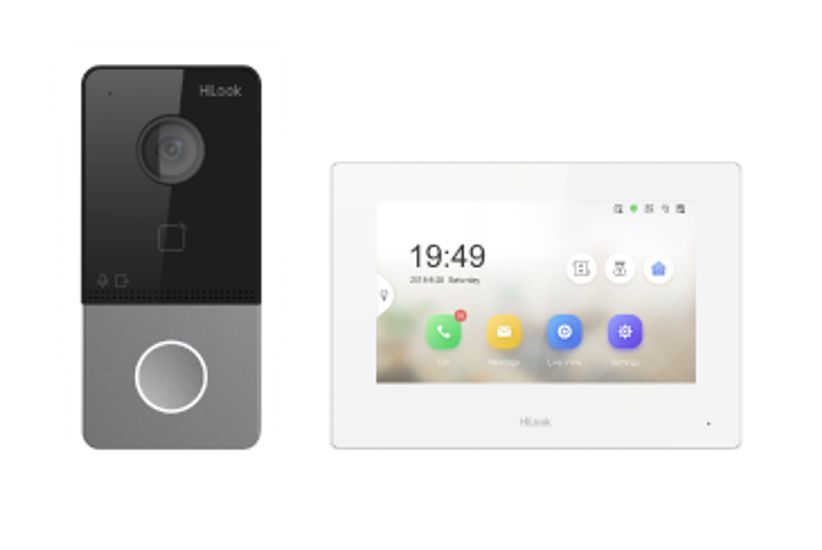

HiLook 7" inch IP Video Intercom Doorbell Kit HA-KIT-IP1

HiLook 7" inch IP Video Intercom Doorbell Kit HA-KIT-IP1

Features

• Indoor station: 7-inch touch screen, user-friendly interface, Plug & Play
• Indoor station: Easy, cost-efficient installation, Wifi & POE Supported
• Indoor station: Receives video call and unlocks on mobile App anywhere, any time
• Indoor station: Supports live view of up to 16 IP cameras
• Door station: High-quality imaging with 2MP resolution
• Door station: Easy, cost-efficient installation, Wifi & POE Supported
• Door station: Easy configuration through WEB interface
• Door station: IP65 water resistant, preventing water ingress for outdoor use

Door Station Specifications

System Parameters

• Operation system: Embedded Linux operation system
• Flash: 32 MB
• RAM: 256 MB

Video Parameters

• Camera: 2MP HD camera
• Night vision: Low illumination IR supplement mode (3 m)
• Backlight compensation: Support
• Digital noise reduction: Support
• WDR: True WDR
• Field of view: Horizontal: 131°, Vertical: 78°
• Video Compression Standard: H.264
• Stream: Main stream: 1080p@30fps, 720p@25fps; Sub stream: D1@25fps
• Motion detection: Support
• Flash-avoid frequency: 50 Hz, 60 Hz

Audio Parameters

• Audio input: Built-in omnidirectional microphone
• Audio output: Built-in loudspeaker
• Audio quality: Noise suppression and echo cancellation
• Audio compression standard: G.711 U
• Audio compression rate: 64 Kbps
• Audio intercom: Two-way audio communication

Network Parameters

• Network protocol: TCP/IP, RSTP
• Wired network: 10/100 Mbps Ethernet

Device Interfaces

• RS-485: 1
• Alarm input: 4
• Debugging port: 1
• Grounding: 1
• TAMPER switch: 1

General

• Power consumption: ＜ 10 W
• Working temperature: -40° C to 53° C (-40° F to 127.4° F)
• Working humidity: 10% to 95%
• Dimension: 138 mm × 65 mm × 27 mm
• Installation: Surface mounting
• Protection level: IP65
• Indicator: 2
• Power supply: IEEE802.3af, standard PoE; 12 VDC

Indoor Station Specifications

System Parameters

• Operation system: Embedded Linux operation system
• Memory: 128 MB
• Flash: 32 MB

Display Parameters

• Display screen: 7-inch colorful TFT screen
• Display resolution: 1024 × 600
• Operation method: Capacitive touch screen

Audio Parameters

• Audio input: Built-in omnidirectional microphone
• Audio output: Built-in loudspeaker
• Audio quality: Noise suppression and echo cancellation
• Audio compression standard: G.711 U
• Audio compression rate: 64 Kbps

Network Parameters

• Wired network: 10/100 Mbps self-adaptive
• Wireless network: Wi-Fi 802.11 b/g/n
• Protocol: TCP/IP, SIP, RTSP
• RS-485: 1 RJ-45 10/100 Mbps self-adaptive

Device Interfaces

• RS-485: 1
• Alarm input: 8-ch alarm inputs
• Relay output: 2
• TF card: Max to 32 G, SD 2.0 or lower version

General

• Power consumption: ≤ 6 W
• Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity: 10% to 90%
• Dimension (L x W x H): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
