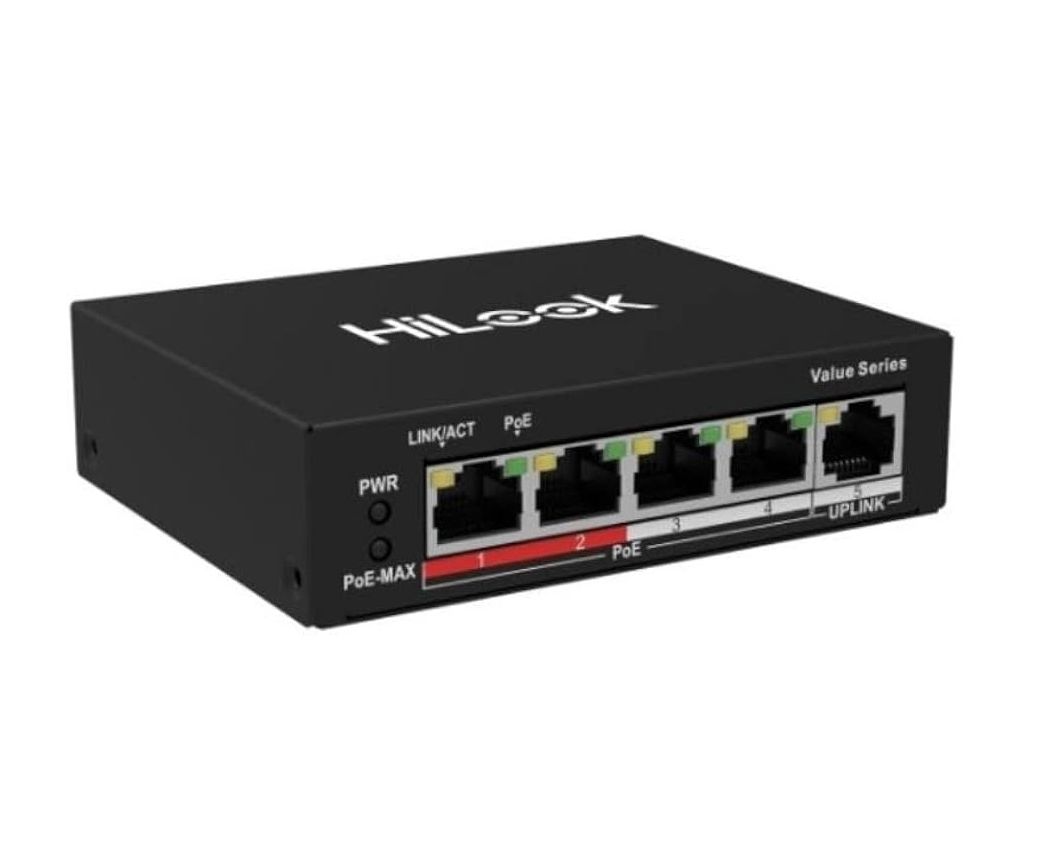

HiLook 5-Port PoE Network Switch 100Mbps NS-0105P-35(B)

HiLook 5-Port PoE Network Switch 100Mbps NS-0105P-35(B)

4 Port Fast Ethernet Unmanaged POE Switch

Product Overview:

The HiLook NS-0105P-35(B) is a compact, cost-effective 5-port PoE switch designed to power and connect IP cameras and other PoE-enabled devices in small to medium-scale surveillance and networking setups. With 4 PoE ports and 1 uplink port, this unmanaged switch simplifies installation by combining data and power delivery over a single Ethernet cable—ideal for security applications where reliability and simplicity are essential.

Key Features:

• 5 Fast Ethernet Ports: Includes 4 PoE (10/100Mbps) ports + 1 uplink port for NVR or router connectivity.
• 35W PoE Power Budget: Supports IEEE 802.3af/at standards, powering up to 4 PoE devices (IP cameras, access points, VoIP phones, etc.) with up to 30W per port.
• Plug-and-Play Setup: Unmanaged switch – no configuration required.
• Power Surge Protection: Built-in 4KV surge protection on all ports for added equipment safety.
• Compact Desktop Design: Small footprint for easy placement in tight spaces or surveillance enclosures.
• Fanless, Silent Operation: Suitable for noise-sensitive environments.

Technical Specifications:

• Unmanaged switch with 4 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port.
• 6 kV lighting protection on all ports.
• 35 W PoE power budget.
• Maximum transmission distance of 250 meters.
• MAC address auto learning and auto aging.

Use Cases:

• Small Business Security Systems: Ideal for powering up to 4 IP cameras in small offices, shops, or cafés, with a single uplink to an NVR or router.
• Home Surveillance: Perfect for homeowners looking to connect multiple PoE cameras with minimal cabling and power needs.
• Retail POS Networks: Supports PoE-enabled terminals and security cameras in retail environments.
• Temporary or Mobile Installations: Suitable for event setups, kiosks, or mobile surveillance units due to its portability and plug-and-play nature.

Whether you’re setting up a new surveillance system or expanding an existing one, the HiLook NS-0105P-35(B) provides an affordable, hassle-free PoE networking solution trusted by professionals and DIY users alike.
