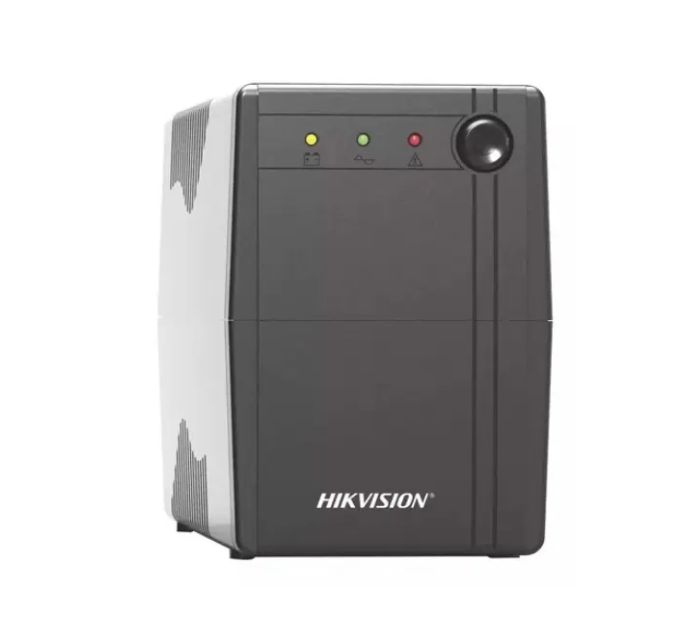

Hikvision UPS 1000VA/360W Uninterruptible Power Supply DS-UPS1000-AU

Hikvision UPS 1000VA/360W Uninterruptible Power Supply DS-UPS1000-AU

The Hikvision DS-UPS1000 Uninterruptible Power Supply is a compact and reliable solution for keeping your devices powered with its 1000VA capacity. With advanced microprocessor control, you can trust this UPS to deliver high performance for your devices.

Specifications

• Protection Method: Overload, discharge, and overcharge protection
• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Humidity: 30% to 90% (non-condensing)
• Weight: Approx. 5.4 kg (11.9 lb)
• Dimension: 274 mm × 95 mm × 139 mm (10.79″ × 3.74″ × 5.47″)

Indicators and Alarms

• LED Indicator:

  • Working Mode (AC Mode): Solid green
  • Charging Mode (DC Mode): Solid red
  • Overloading Mode: Flashing yellow

• Alarm Signals:

  • Charging Mode (DC mode): Sounding every 10 seconds
  • Low Battery: Sounding every second
  • Overloading Mode: Sounding every 0.5 seconds
  • Fault: Continuously sounding

Performance and Capacity

• Capacity: 1000 VA / 600 W
• Input Voltage Range: 220 VAC to 240 VAC
• Input Frequency Range: 50/60 Hz
• AC Voltage Regulation (Batt. Mode): 220 VAC to 240 VAC
• Frequency Range (Batt. Mode): 50/60 Hz ± 0.5 Hz
• Transfer Time: DC to AC ≤ 10 ms; AC to DC ≤ 10 ms
• Waveform (Batt. Mode): Charging Mode (DC Mode): PWM

Battery Details

• Battery: 12 V/9 Ah × 1
• Rechargeable: Typical recharge time: 10 to 16 hours

Storage Conditions

• Temperature: -10 °C to 50 °C (14 °F to 122 °F)
• Humidity: 20% to 95% (non-condensing)

Key Features

• Advanced Microprocessor Control: Guarantees high performance and reliability for your devices.
• Comprehensive Protection: Overload, discharge, and overcharge protection to safeguard your equipment.
• LED Indicators & Audible Alarms: Clear status updates for working, charging, and fault modes.
• Compact Design: Measuring just 274 mm × 95 mm × 139 mm, it fits seamlessly into your setup.
• Efficient Battery: 12V/9Ah rechargeable battery with a typical recharge time of 10–16 hours.

Built for Versatility

Operating efficiently in temperatures ranging from 0°C to 40°C and humidity levels of 30% to 90%, the DS-UPS1000-AU is perfect for various environments. Its fast transfer time (≤10 ms) ensures smooth transitions between power modes, while its PWM charging mode delivers consistent performance.
