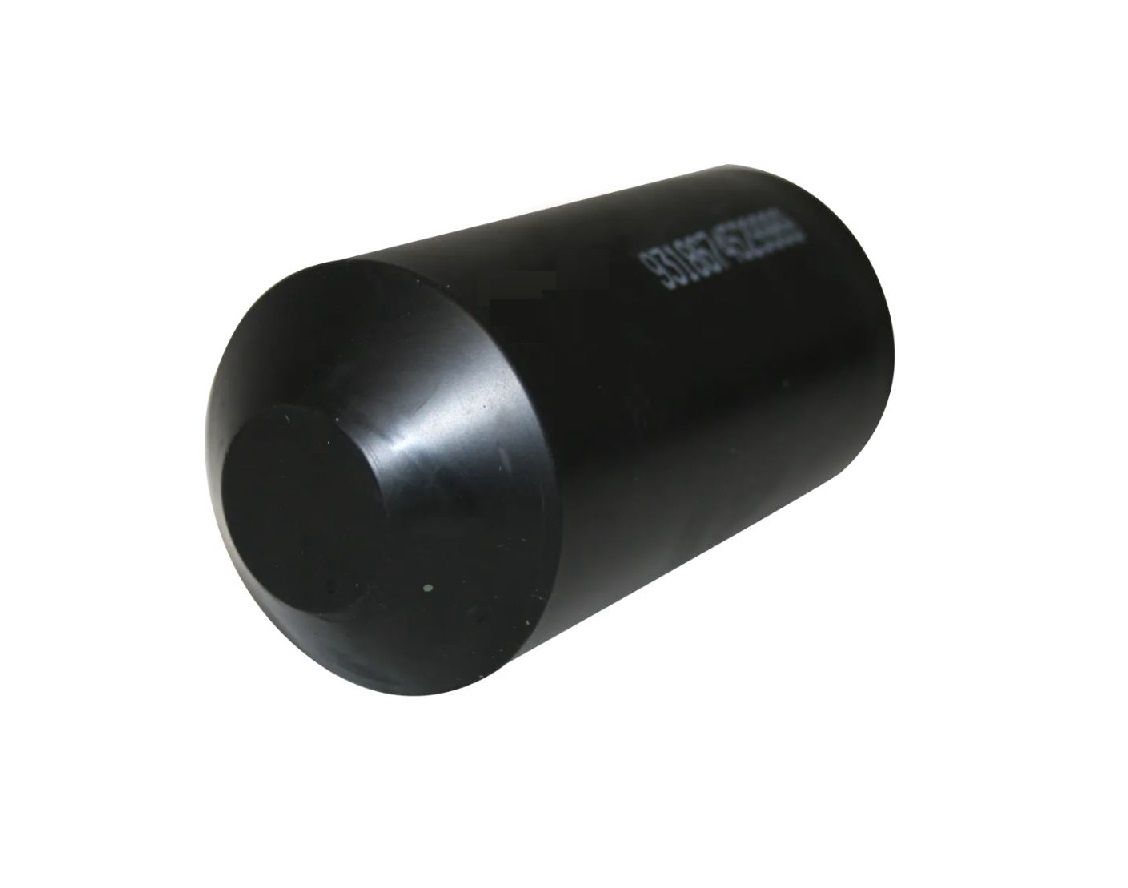

Heatshrink End Cap with glue 20-8MM EC101

Heatshrink End Cap with Glue 20-8MM EC101

Heatshrink end caps are designed for sealing cable ends during installation or storage. Made from crosslinked polyolefin, they feature a hot melt glue liner that securely bonds the cap to the cable jacket.

Features

• Quick, reliable seal of cable ends
• Watertight with unlimited storage life
• Highly resistant to:
  • Ultraviolet rays
  • Aggressive soils
  • Chemicals and corrosion

Instructions

To use the heatshrink end cap:

1. Start the shrinkage process from the closed end of the cap.
2. Continue shrinking until glue extrudes from the edges of the cap, ensuring a secure seal.

Technical Data

• Conformant Standards: IEC, VDE, DIN
• Material: Cross-linked polyolefin with thermoplastic sealant
• Continuous Operating Temperature: -35°C to +110°C
• Shrinkage Temperature: Starts at 105°C, completed at 135°C
• Tensile Strength: 12MPa
• Elongation at Break Point: 500%
• Longitudinal Shrinkage: 10%
• Breakdown Voltage: 10kV/mm wall thickness
• Volume Resistivity: 1.0 x 10¹⁴ ohms cm
• Water Absorption: <0.15%
• Flammability: Do not use in flame-prone areas
• UV Resistance: Passed ISO 1408

This product offers durability, reliability, and long-lasting performance, making it an excellent choice for cable end protection.
