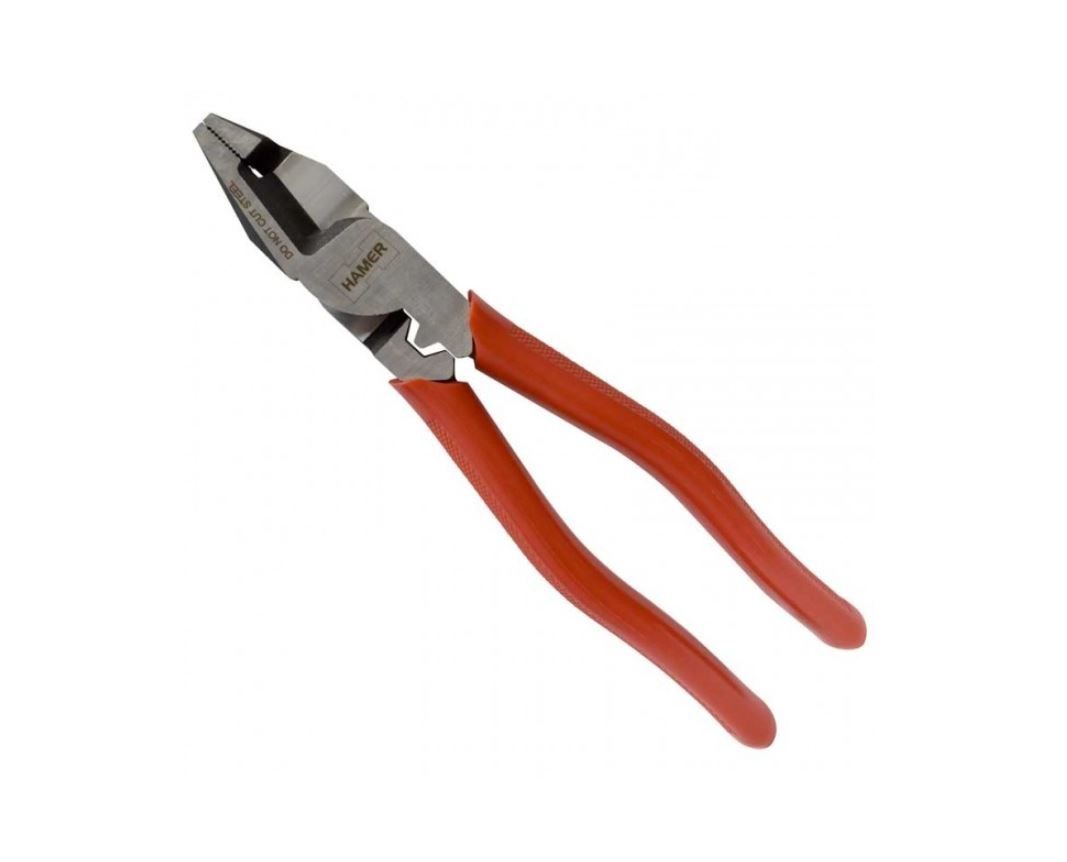

Hamer Universal Linesman Plier 210mm with Cross cut blades Crimping Die PUCCMG-8

• CROSS CUT BLADES for easier cable cutting
• Machine polished blades cut cable without distortion
• HIGH LEVERAGE HINGE makes cutting cable that much easier
• CRIMPER with clearance for larger lugs
• Built-in terminal crimping die on the handle side of pivot
• Cross hatch nose grip helps grip thin materials easily
• Heat-Treated
• TOUGHENED STEEL built to last
• Heavy duty comfort handle grips
• Sharp-edged cutting section
• For cutting TPS cable and circular cable
• Cuts copper cable only; not designed to cut steel
• 2.6mm² diameter x 3 wire flat cable
• Up to 25mm² Copper Wire
• 1.25 - 2mm² Non-Insulated Terminals

Specifications:

• Grips: Moulded Vinyl
• Head: Drop-forged Carbon Steel
• Cutting capacities:
  • F Cable (DIN): max:4.0mm x 3
  • F Cable (JIS): max:2.6mm x 3
  • IV Cable(DIN): max:25sq.mm
  • IV Cable(JIS): max:22sq.mm
• Cramping capacities:
  • (JIS): 1.25 ~ 2.0sq.mm
  • (DIN): 2.5 ~ 6.0sq.mm
