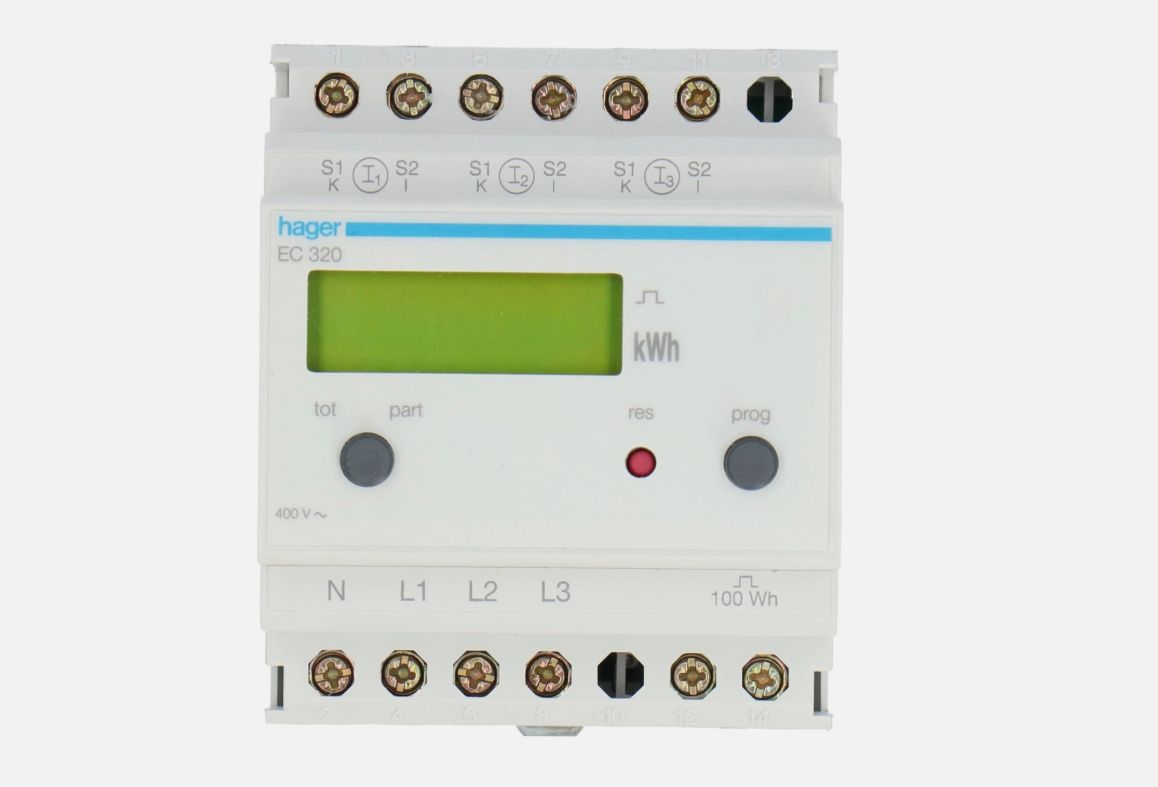

Hager 3 Phase 3 Pole + N kWh Energy meter via CT EC320

Hager 3 Phase 3 Pole + N kWh Energy meter via CT EC320

This kilowatt hour meter measures the active electrical energy used in an electrical installation. It features a total counter, a resettable partial counter, and a calibrated pulsed output. Additionally, in the case of two tariff levels, the EC 321 can separately count the energy used in tariff 1 and tariff 2.

Technical Specifications

Voltage Input

• Working voltage: 400 V ± 20%
• Frequency: 50/60 Hz ± 2 Hz
• Consumption: ≤ 2 VA

Current Input

• Measure with current transformer
• Primary current: 50 A to 1500 A
• Secondary current: 5 A
• Consumption: ≤ 1 VA per phase

Electrical Characteristics

• IP 30 in the enclosure
• Insulation class: II
• Consumption: ≤ 5 VA

Accuracy

• IEC 1036 class 2 (2%)

Functional Characteristics

• Direct reading: unit = 0.1 kWh
• Display capacity: 999 999.9 kWh
• Instant consumption: blinking LED 10 Wh
• Savings of measures are made regularly and in case of power failure

Impulse Transmitter

• Relais reed
• 1 pulse: 100 Wh
• Pulse duration: 60 ms ± 3 ms
• External supply: 100 Vdc max.
• Operating current: 0.3 A max.

Tariff Level Input

• Supply: 230 V ± 20%
• Tariff level 1: 0 Vac
• Tariff level 2: 230 Vac
