Hager 10A D curve RCBO with Neutral Tail ADD910T
SKU HAG-ADD910T
$103.62
On Sale
was $143.62 Save $40.00
In stock
1
Save this product for later
Hager 10A D curve RCBO with Neutral Tail ADD910T
Product Details
Brand: HAGER
Weight: 0.19 kg

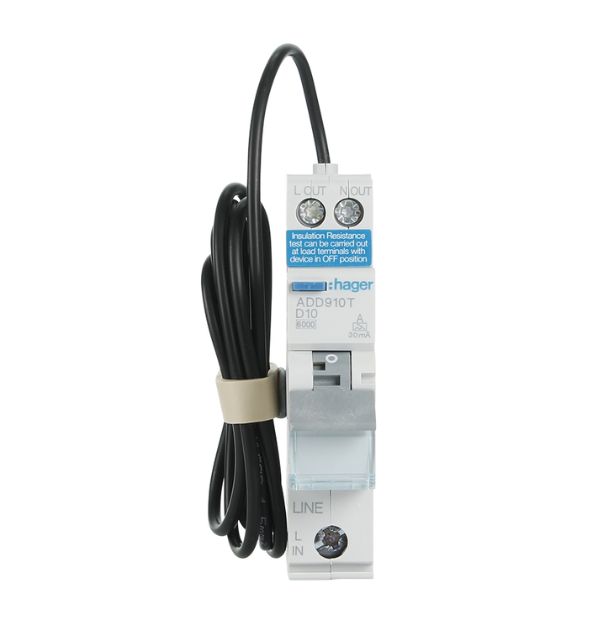

Hager 10A D curve RCBO with Neutral Tail ADD910T
This is a D Curve 1 Pole + Neutral RCBO that protects and controls power and lighting circuits. This RCBO is rated at 6kA and is suitable for commercial and industrial applications.
D Curve Applications
Designed for loads with high inrush currents, the new D curve overcurrent protection is ideal for ensuring continuity of service while offering RCD protection.
Examples include:
- Heavy machinery
- Large pumps and motors
- Some EVCS
Features
- Number of poles: 1P
- Type of pole: 1P+N
- Rated operational voltage Ue: 230 / 240 V
- Frequency: 50 Hz
- Rated residual operating current: 30 mA
- RCBO D curve din rail mounted
- Concurrently switches N-neutral
- With fault indicator
- Rated insulation voltage: 440 V
- Max operating voltage: 264 V
- Rated impulse withstand voltage: 4 kV
- Depth of installed product: 70 mm
- Height of installed product: 85 mm
- Width of installed product: 17.7 mm
