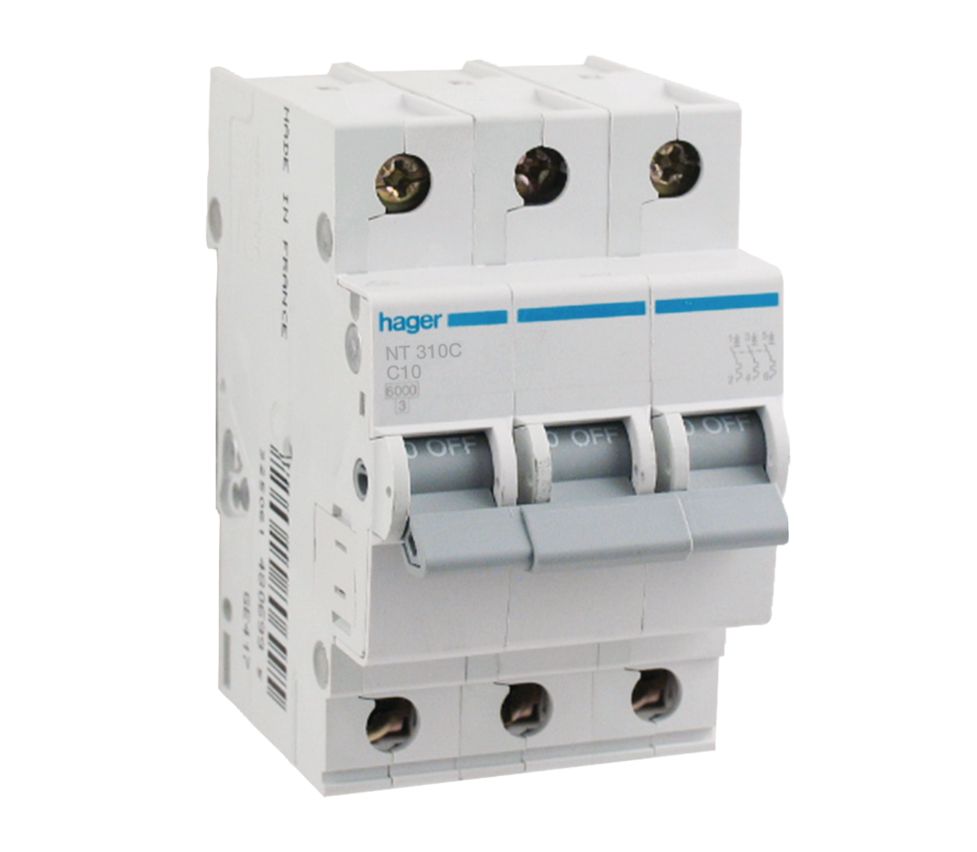

Hager 10A 3 pole MCB Circuit Breaker 6kA NT310

Hager 10A 3 pole MCB Circuit Breaker 6kA NT310

This is a three pole circuit breaker which protects and controls circuits against overloads and short-circuits. Rated at 6kA, it is suitable for both commercial and domestic applications.

Key Features:

• 3 Pole
• 10kA
• Curve C
• Rated short circuit breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Rated insulation voltage: 500 V
• Operating temperature: -25 to 60 °C
• Electric endurance in number of cycles: 4000
• Number of mechanical operations: 20000

Technical Specifications:

• Top and bottom screw terminals connection capacity:
  • With massive conductor: 1/35 mm²
  • With flexible cable: 1/25 mm²
• Tightening torque: 2.8 Nm
• Dimensions of installed product:
  • Height: 83 mm
  • Width: 52.5 mm
  • Depth: 70 mm
