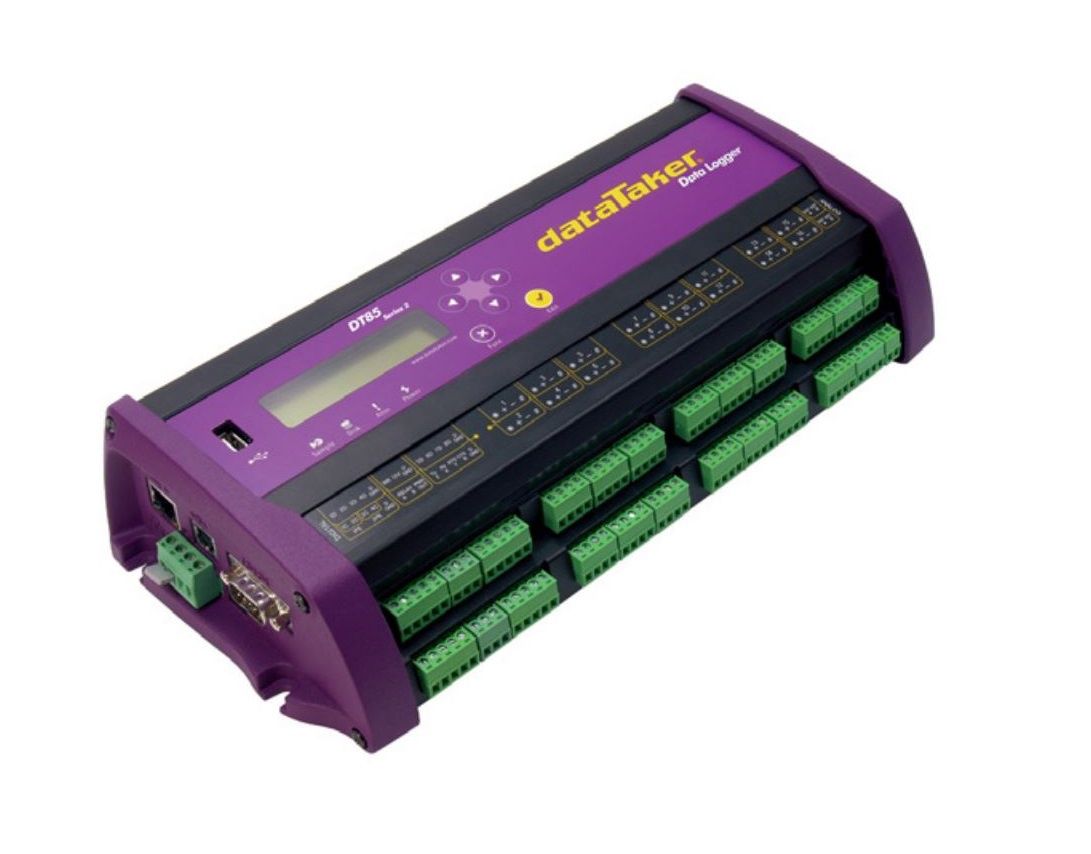

DataTaker DT85-S4 Universal compatiable smart data logger

DataTaker DT85-S4 Universal compatiable smart data logger

OLD STOCK - CLEARANCE PRODUCT

The Smarter Solution

The dataTaker DT85 smart data logger offers a wide range of features, making it suitable for numerous applications. It is a robust, stand-alone, low-power data logger equipped with:

• USB memory stick support
• 18-bit resolution
• Extensive communication capabilities
• Built-in display

The Dual Channel concept of the DT85 allows up to 32 isolated or 48 common-referenced analog inputs, which can be used in various combinations. Additional features include:

• Support for multiple SDI-12 sensor networks
• Modbus compatibility for SCADA systems
• FTP and Web interface
• 12V regulated output to power sensors

This makes the DT85 a completely self-contained solution.

Key Features

• Universal – Compatible with the majority of commercially available sensors
• Programmable – Customizable software deployment for changing and challenging requirements
• High Input Impedance – Ensures accurate sensor readings
• Expandable – Expandable to 960 analog inputs with an expansion module
• Programmable Analog Output – For connection to SCADA or control applications

Versatile Measurement

The DT85 allows you to connect a variety of sensors through its versatile analog and digital channels, high-speed counter inputs, phase encoder inputs, and programmable serial sensor channels.

It supports measurements for:

• Temperature, voltage, current, 4-20mA loops
• Resistance, bridges, strain gauges
• Frequency, digital, serial, and calculated measurements

All measurements can be scaled, logged, and returned in engineering units or within statistical reports. You can also set up sampling, logging, alarm, and control tasks to meet your specific needs. Interfaces for smart sensors, GPS, and other intelligent devices further enhance the DT85's flexibility.

Superior Data Storage and Communications

The standard DT85 unit can store up to 10 million data points (expandable). You have full control over data management:

• Overwrite or stop logging once memory is full
• Archive data on alarm events
• Copy data to a USB memory stick
• Transfer data via FTP/Email

Communication features include:

• RS232, USB, and Ethernet connectivity
• Local or remote access via modem or the Internet
• A web interface for configuration, data access, and viewing current measurements as mimics or lists using a web browser

The FTP/Email function provides seamless data transfer to your office over the Internet or wireless networks, eliminating the need for polling or specific host software.

What's Included

• DT85 Series 4 Data Logger only
