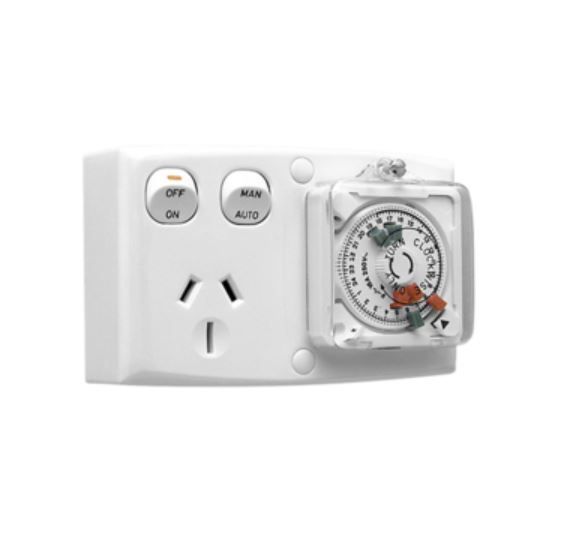

Clipsal 24hr Analogue Timer Switch Socket GPO TC15/24-WE

Clipsal 24hr Analogue Timer Switch Socket GPO TC15/24

Analogue time clock with manual or Automatic switch. East to set with the pins. Green for on time and red for off.

10 Amp power point and 24 hour timer. Ideal for controlling 10 amp plug in appliances

Features:

• Clipsal TC15/24
• Colour: White
• 24hr Timer
• Analogue timer with 3 x green and 3 x red pins.
• Auto / Manual switch
• On / Off switch
• Inc back mounting plate
• Width 120mm
• Depth 60mm
• Height 75mm

The Clipsal TC15/24 (White Electric: TC15/24-WE) is a discontinued 24-hour analogue timer control single switch socket outlet from the Clipsal Standard Series.

Key Specifications

• • Type: Single switch socket outlet with 24-hour timer control (1 Gang, 3 Pins)
• • Rated Voltage: 250V AC (50Hz)
• • Rated Current: 10A
• • Color: White Electric
• • Dimensions: 121 mm (length) x 79 mm (width) x 42 mm (depth); 84 mm fixing centers
• • Standards Compliance: AS/NZS 3100, AS/NZS 3112, AS/NZS 3133 (Approval S/1)
