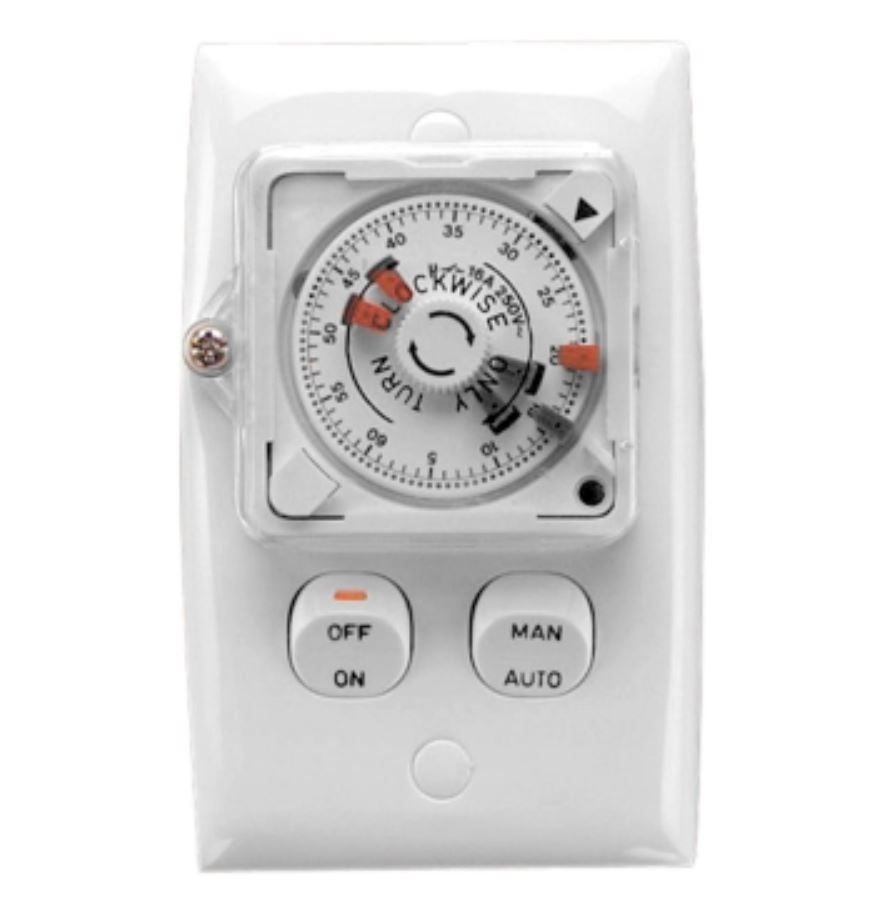

Clipsal 1hr Analogue Timer Switch TC32V1

Clipsal 1hr Analogue Timer Switch TC32V1

Analogue time clock with manual or Automatic switch. East to set with the pins. Green for on time and red for off.

10 Amp 1 hour timer. Ideal for controlling 10 amp appliances

Features:

• Clipsal TC32V1
• Colour: White
• 1hr Timer
• Analogue timer with 3 x green and 3 x red pins.
• Auto / Manual switch
• On / Off switch
• Width 120mm
• Depth 60mm
• Height 75mm

The Clipsal TC32V1 is a discontinued 1-hour analogue timer control single switch from the Clipsal Standard Series.

Key Specifications

• • Type: switch with 1-hour timer control
• • Rated Voltage: 250V AC (50Hz)
• • Rated Current: 10A
• • Color: White Electric
• • Dimensions: 121 mm (length) x 79 mm (width) x 42 mm (depth); 84 mm fixing centers
• • Standards Compliance: AS/NZS 3100, AS/NZS 3112, AS/NZS 3133 (Approval S/1)
