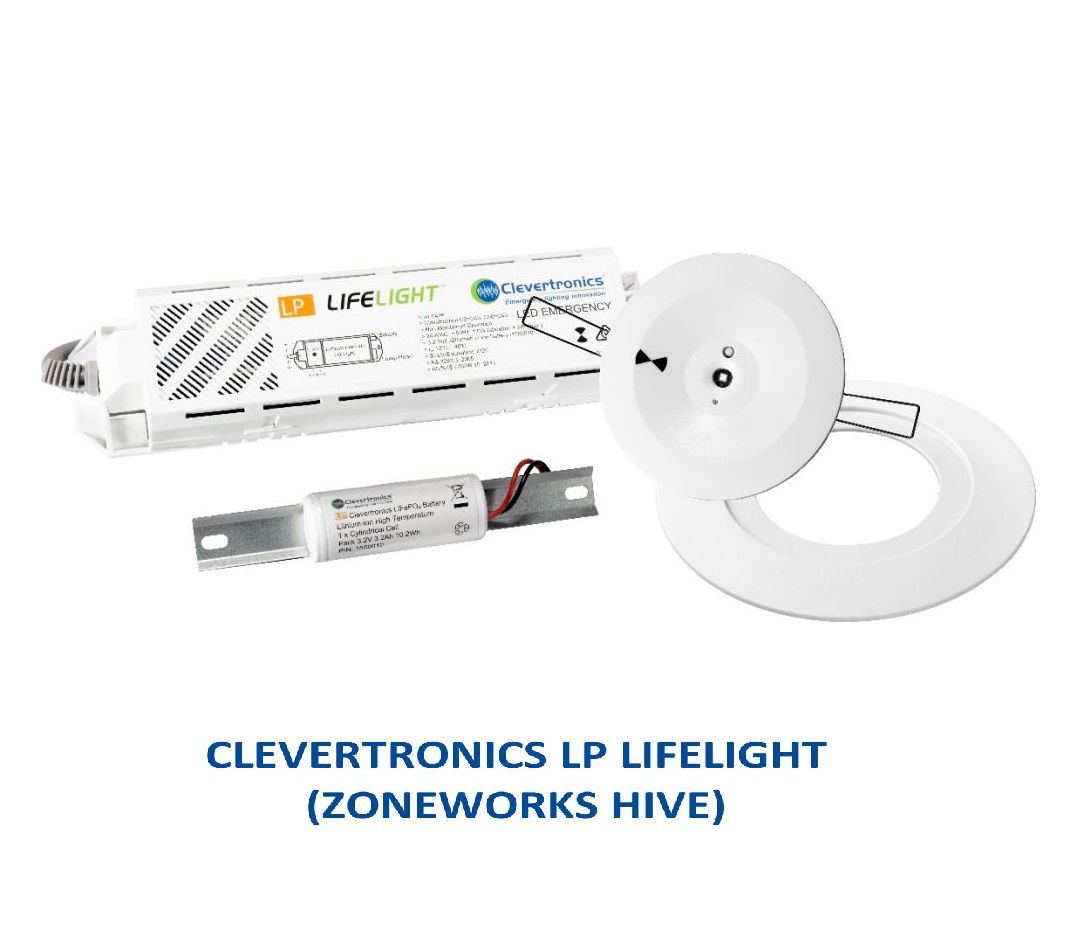

CLEVERTRONICS LP Lifelight Recessed Spitfire Emergency Light CLIFE-HV

CLEVERTRONICS LP Lifelight Recessed Spitfire Emergency Light CLIFE-HV

The Lifelight provides a D40 emergency classification in a sleek architectural design. With market-leading lithium battery technology and energy-efficient LEDs, the Lifelight delivers lower maintenance and energy costs. As the first LED emergency light on the market, the Lifelight continues to lead the way in a variety of emergency lighting applications.

Features and Benefits

• AS/NZS 2293.3 compliant
• D40 emergency classification
• 145mm adaptor plate for retrofitting
• 85mm Ceiling Hole cut-out
• Low power consumption
• Spring clips for easy installation
• Lithium Iron Phosphate or Nanophosphate® battery
• Clevertest Plus System compatible

Applications

• Office Buildings
• Schools
• Apartments
• Retail outlets

Zoneworks and DATA Monitored Options

Lifelights with part numbers CLIFE-ZW and CLIFE-DATA are fitted with Zoneworks communications modules (nodes). These fittings are monitored using:

1. Powerline Carrier Technology that utilises the power cable to provide data communication.
2. A dedicated data cable to/from a data router installed on a dedicated data trunk connected to a central Server (can also be connected via Ethernet/Internet/Fibre).

Zoneworks software on the server is used to monitor, coordinate testing, and collate test data from each Lifelight. Zoneworks Lifelights can be commissioned by:

• A single push of the test switch
• Scanning the supplied barcode

The LED Test Switch indicator provides a multifunction indication of the status of the Lifelight during testing and normal operation.

For the DATA version, a 2-way “figure 8” cable and terminal block facilitate the connection to the DATA network via a multi-drop bus (daisy chain connection).

For further information on the installation of a Zoneworks system, please refer to the Zoneworks Users Guide and Commissioning Guide (incl. DATA version).
