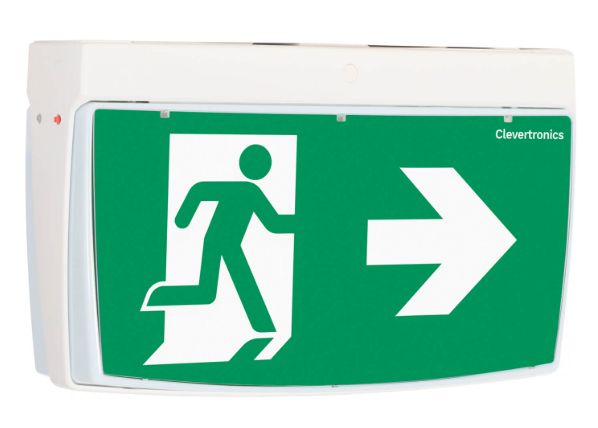

CLEVERFIT Exit Light universal mounted CCFLED-HV

CLEVERFIT Exit Light universal mounted CCFLED-HV

Note- Box little bit damage Clearance product non-refundable

The Cleverfit Exit is a proven market leader that is known for its reliability, energy efficiency and ease of installation. The tamper resistant cover makes it possible to include all diffuser combinations in one box for single or double sided applications. The Cleverfit can be either wall or ceiling mounted and the quick connect bracket makes installation nice and easy.

Specification -

Part Number CCFLED
MIC AUA02310030002
Description Cleverfit Exit, Surface Mount, LP, Clevertest Plus, All Pictograms, Single or
Double Sided
Construction ABS Body and Diffuser with Polycarbonate Clear Tamper Proof Cover
Mounting Wall & Ceiling, Single-Sided & Double-Sided
Dimensions L x W x H 355mm x 80mm x 215mm
Weight 1.6kg
Operating Mode Maintained
Testing System Clevertest Plus Enabled (Not activated by default)
Battery Lithium Iron Phosphate, 3.2V 1100mAh
Charging Method Intelligent Current Limited Constant Voltage
Diffuser All Directional Inserts Included in the Box
Lamp(s) 6 x LED, Lifetime: >100,000hrs (AS/NZS2293.3 LSL=12Y/00M)
Operating Voltage 240V AC; 50Hz
Power Consumption 2.5 Watts (Standby), 3.7 Watts (Max)
Inrush Current (Peak/Duration) 11.26A/80µS
Earth Leakage N/A (Class II)
IP Rating IP20
Operating Temperature 1˚C to 40˚C
Viewing Distance 24m
AS2293 Classification C0=D4 C90=E3.2
Applicable Standards AS/NZS3820, CISPR15, AS/NZS2293.3
Compliance Marking (RCM)
Appliance Class
Class II double insulated, noiseless (clean) earth (ground)
terminal (not a protective earth and used for EMC purposes only)
