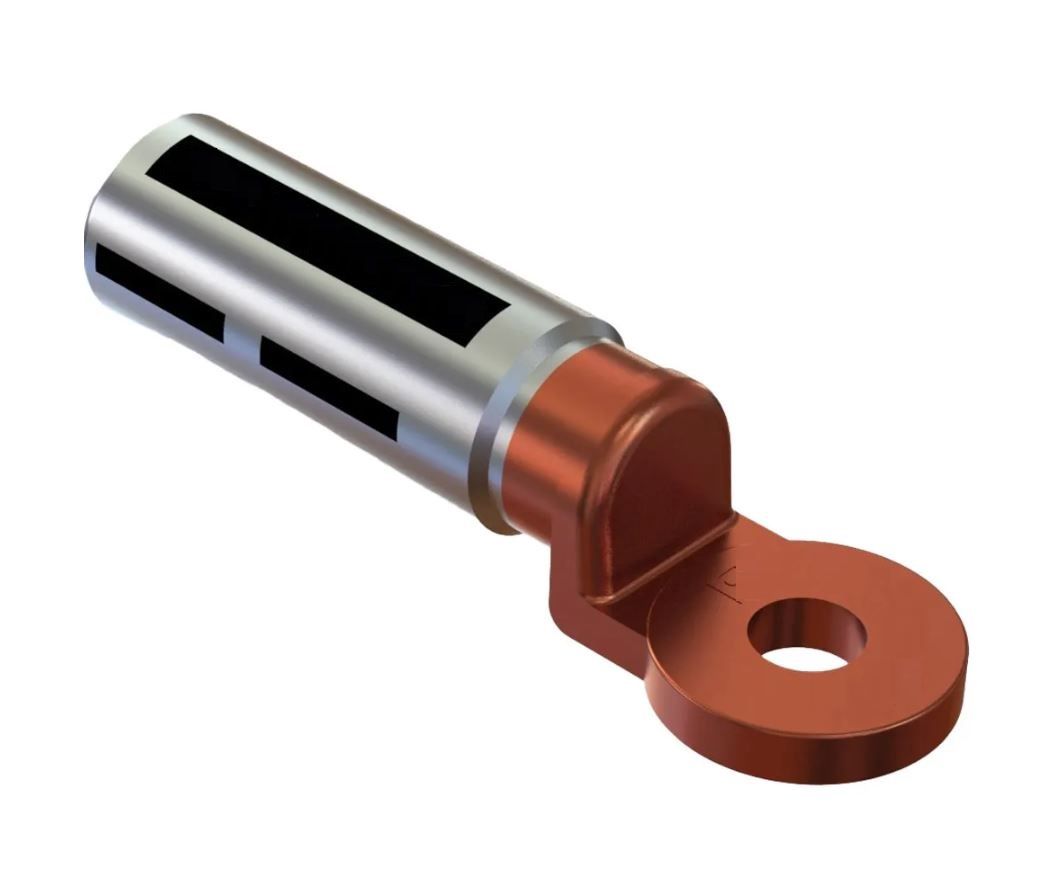

Bi-Metal Copper Aluminium Lug suits to 25mm² cable, 12mm stud hole BL25-12 HBT25-12

Bi-Metal Copper Aluminium Lug suits to 25mm² cable, 12mm stud hole BL25-12 HBT25-12

Key Features

• Manufactured using a friction welding process, ensuring a very strong and electrically sound joint.
• Suitable for aluminium conductors and copper terminals or busbars.
• Crimp from the palm end to force the compound into conductor strands.
• Barrel filled with crimping compound and sealed with a cap.
• Crimping positions (AF) are clearly marked on the barrel.

Designed for Stranded Sector and Circular Stranded Aluminium Conductors, the CABAC range of Bi-Metal Lugs is made from the highest quality materials:

• Aluminium (99.6%)
• Copper (99.9%)

These materials are joined using a friction welding process, which produces a very strong, electrically sound joint that is not subject to electrolysis. The barrel is chemically treated to reduce contact resistance and corrosion and is filled with a jointing compound that breaks the oxide layers on the aluminium.

Crimping Instructions

• The lug should be crimped from the palm end first to force the joint compound into conductor strands.
• Designed to be crimped using standard Australian tooling with normal aluminium hexagonal dies.

Standards and Compliance

• AS/NZS4325 Part 1

Technical Information

• Conductive Material:
  • Aluminium Sleeve: 99.6% pure
  • Copper Palm: 99.9% pure
• Tensile Strength: 110 MPa
• Ductile Rating: 28%
• Final Metal State: Fully Annealed (including joint)
• Joining Method: Friction Welding (IEC standard)

Electrical Properties

• Resistivity:
  • Aluminium: 2.6 micro-ohm cm (max)
  • Copper: 1.738 micro-ohm cm
• Conductivity:
  • Aluminium: 61.8% IACS (min)
  • Copper: 99.7% IACS
• Operating Temperature: -40°C to 100°C
