Active link 7 Hole 370A TESL370R

Active link 7 Hole 370A TESL370R

Features -

• 7 Hole Active Link with two screws per tunnel
• 2 tunnels (5mm diameter) accommodate 1 x 16 sq mm cable
• 2 tunnels (11mm diameter) accommodate 1 x 50 sq mm cable
• 1 tunnel (15mm diameter) accommodates 1 x 120 sq mm cable
• 2 tunnels (17mm diameter) accommodate 1 x 150 sq mm cable
• Dimensions: 102 x 47 x 52 mm
• Allen Key Enclosed for convenience.

Applications

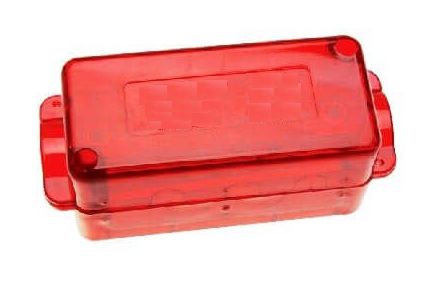

Active link 7 hole for service cable switchboards features an outer casing made of tinted transparent poly-carbonate. The transparent cover enables quick checks of wiring and allows you to locate the sealing screw at a glance.

This Active link utilizes a brass bar to connect the main to the rest of the circuit, making it ideal for both commercial and industrial use in switchboards. It can handle cables up to 150mm in size. Additionally, the sealing screw with brass insert resists stripping, ensuring durability and reliability.
