Active link 13 Hole 165A TESL150R

Active link 13 Hole 165A TESL150R

Features -

• 13 Hole Active Link with two screws per tunnel
• 2 tunnels (4.6mm diameter) accommodate 1 x 10 sq mm cable
• 8 tunnels (6.6mm diameter) accommodate 1 x 16 sq mm cable
• 1 tunnel (8mm diameter) accommodates 1 x 35 sq mm cable
• 2 tunnels (10mm diameter) accommodate 1 x 50 sq mm cable
• Dimensions: 120 x 47 x 45 mm
• Mounting center 90mm x 34mm
• 125 deg C maximum temperature rating
• Allen Key Enclosed for convenience.

Applications

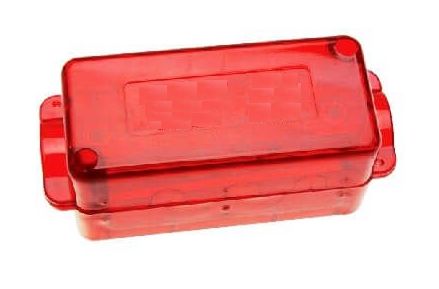

Active link 13 hole for service cable switchboards features an outer casing made of tinted transparent poly-carbonate. The transparent cover enables quick checks of wiring and allows you to locate the sealing screw at a glance.

This Active link utilizes a brass bar to connect the main to the rest of the circuit, making it ideal for both commercial and industrial use in switchboards. It can handle cables up to 50mm in size. Additionally, the sealing screw with brass insert resists stripping, ensuring durability and reliability.
