Active link 12 Hole 100A TESL12R AL12100
SKU TES-L12R
$8.17
On Sale
was $13.17 Save $5.00
In stock
1
Save this product for later
Active link 12 Hole 100A TESL12R AL12100
Product Details
Brand: TESLA
Weight: 0.36 kg
Active link 12 Hole 100A TESL12R AL12100
Features -
- 12 Hole Active Link with two screws per tunnel
- 8 tunnels (4.6mm diameter) accommodate 1 x 10 sq mm cable
- 4 tunnels (7.5mm diameter) accommodate 1 x 25 sq mm cable
- Dimensions: 110 x 60 x 60 mm
- Mounting center 80mm
- 125 deg C maximum temperature rating
- Allen Key Enclosed for convenience.
Applications

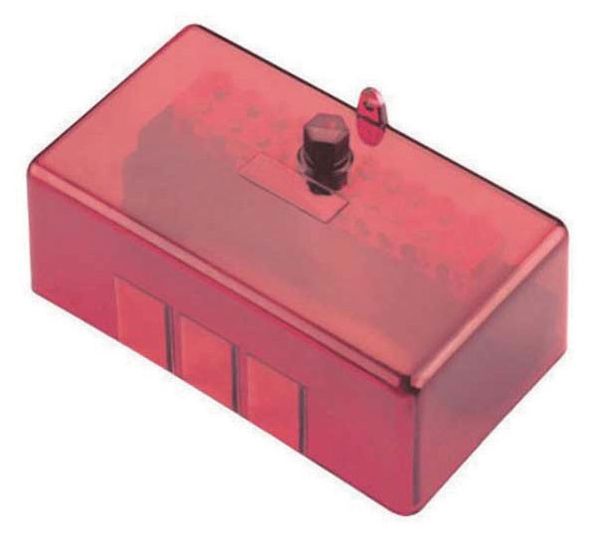

Active link 12 hole for service cable switchboards features an outer casing made of tinted transparent poly-carbonate. The transparent cover enables quick checks of wiring and allows you to locate the sealing screw at a glance.
This Active link utilizes a brass bar to connect the main to the rest of the circuit, making it ideal for both commercial and industrial use in switchboards. It can handle cables up to 25mm in size. Additionally, the sealing screw with brass insert resists stripping, ensuring durability and reliability.
