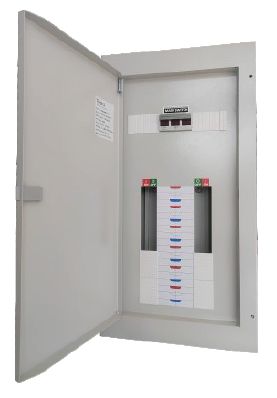

48 Pole 3 Phase Chassie Metal Distribution Board with 125A Main Switch DB48MS125

48 Pole 3 Phase Chassie Metal Distribution Board with 125A Main Switch DB48MS125

Key Features -

• Standards Compliance:
  Conforms to BS En60439 IEC 60439 Part 3, AS/NZS 61439.3 standards.

• Included Components:
  Supplied with neutral and earth terminal.

• Material and Build:
  Made of galvanized steel with a 1.0mm thickness.

• Electrical Specifications:

  • Rated operational voltage: 415V 50/60Hz
  • Rated insulation voltage: 600VAC
  • Busbar rating: 125Amp

• Protection and Safety:

  • Degree of protection: IP40
  • 6Ka encapsulated Chassis.

• Design and Installation:

  • Surface Mount in Grey.
  • Dimensions: 884mm x 406mm x 102mm.
