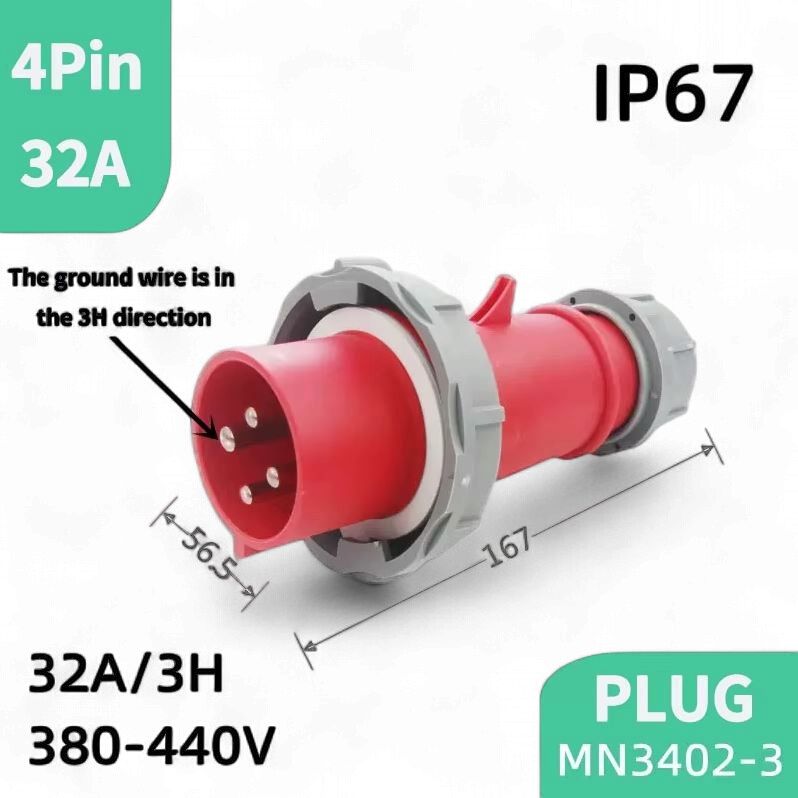

4 Pin 32A Marine CEE Straight Plug Refrigerated Container MNIEKNES IP67 MN3402-3

4 Pin 32A Marine CEE Straight Plug Refrigerated Container MNIEKNES IP67 MN3402-3

Product Overview

• Industrial-grade 4-pin 32A marine connector Designed for heavy-duty applications, this 4Pin 32A connector ensures reliable power transmission in demanding environments such as refrigerated containers and industrial setups.
• High-voltage compatibility up to 380V Engineered for use at 380 V, this connector supports stable operation in high-voltage industrial systems, making it ideal for 380–440V electrical networks.
• Robust 3P E 32A pin configuration Featuring a 3P E 32A pin setup, this connector delivers secure and durable electrical contact, minimizing resistance and ensuring efficient power delivery.
• Universal fit for marine and industrial use Suitable for both refrigerated and industrial containers, this quad marine four hole connector provides a reliable connection in harsh conditions and outdoor applications

CEE Connectors ranging from 32A, 3 to 5 Pole are available in IP67 versions. These connectors boast a robust design capable of withstanding harsh environments, ensuring reliability and durability. With a quick and easy assembly, they save both time and energy.

Key Features

• High Thermal Stability: Self-extinguishing properties for enhanced safety.
• High Weathering Resistance: Built to endure challenging environmental conditions.
• UV-Resistance: Complies with ISO 4892-2 standards.
• Chemical Resistance: Excellent resistance to a variety of chemicals.
• Environmentally Friendly: Free from cadmium and halogen.

Technical Specifications

• CEE-plug IP67
• Housing Material: PA6
• Number of Poles: 3pole, 4pole and 5pole
• Clock-Position: 6h
• Rated Voltage/Frequency: 200/346V~ - 240/415V~ / 50+60Hz
• Contacts: Brass
• Connection Technology: Screw terminals
• IP Protection Class: IP66/IP67

This product is designed to meet international standards and is perfect for industrial electrical applications.
