3 way Terminal Distribution Block 3 x 50mm2 TB503
SKU CAB-TB503
$27.26
On Sale
was $37.26 Save $10.00
In stock
1
Save this product for later
3 way Terminal Distribution Block 3 x 50mm2 TB503
Product Details
Brand: CABAC
Weight: 0.25 kg
3 way Terminal Distribution Block 3 x 50mm2 TB503
Product Description

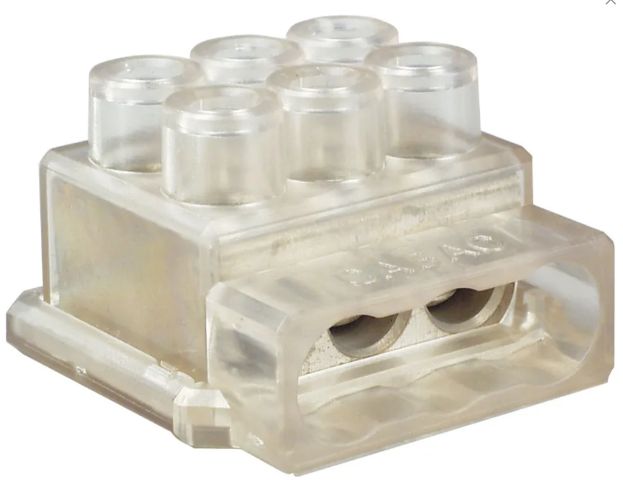

Terminal Block - 3 Way up to 50mm²
The terminal block range is designed to connect power conductors of various sizes. Its primary use is in URD pillars, where consumer mains connections need to be made.
Key Features
- Shrouded allen key screws for clamping the conductor.
- 3 way configuration: Supports 2.5 to 50 sq. mm AL & Cu conductors.
- Fully insulated terminal blocks for URD applications.
- Two allen screws per conductor for extra security (requires a 5mm allen key).
- Available in 3 and 6 way configurations.
- The 6 way block includes a touch-proof blanking insert to protect against accidental electrocution.
Installation Instructions
To install:
- Strip the conductor.
- Insert the conductor.
- Tighten the allen screws.
Technical Data
- Conductive Material: Brass alloy tinned
- Set Screw Material: Brass alloy tinned
- Cover Material: Polycarbonate
Accepting Authorities
- Energy Australia
- Integral Energy
