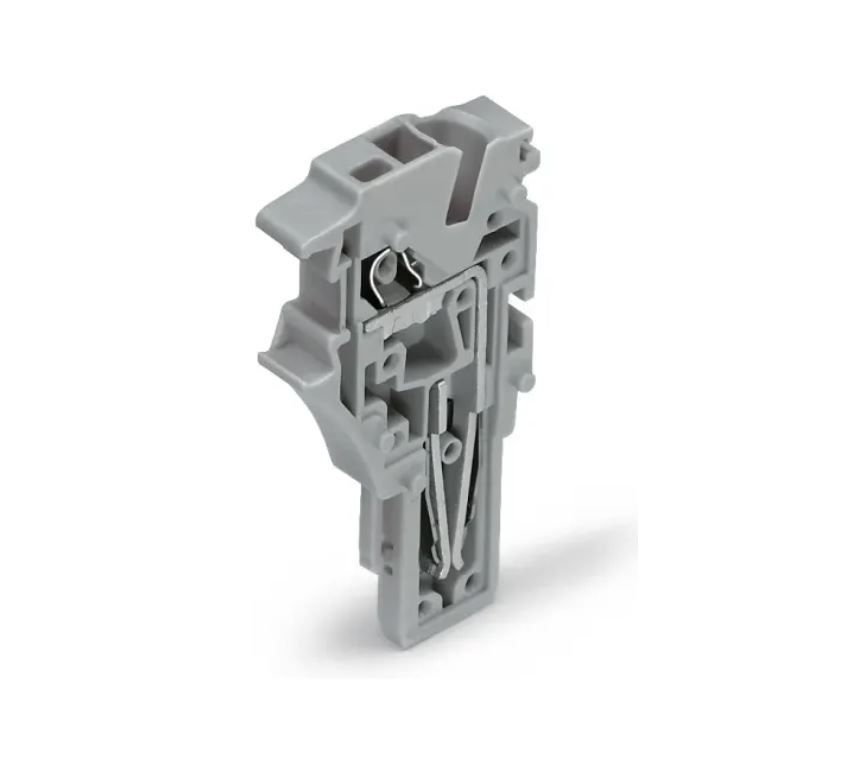

2022-171 Center module 1 Conductor female push in clamp connector 4mm²

2022-171 Center module 1 Conductor female push in clamp connector 4mm²

Key Features:

• Female connector, 2022 Series, operating tool required
• Strip lengths must be between 10 and 12 mm when connecting conductors.
• Pluggable rail-mount terminal blocks are ideal for use in switchgear units and control systems, such as in railroad technology.
• Combines the functionality of rail-mount terminal blocks with pluggable connectors.
• Enables pre-assembled installations thanks to its variable wiring system, saving time and money during manufacture, installation, operation, and maintenance.

Push-in CAGE CLAMP® Technology:

• Provides a universal connection solution for any type of conductor.
• Allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools.

Specifications:

• Dimensions: 5.2 x 40.5 x 22.4 mm (width x height x depth)
• Suitable for conductor cross sections ranging from 0.25 mm² to 4 mm², depending on conductor type.

Additional Details:

• This female connector/socket is operated using an operating tool.
