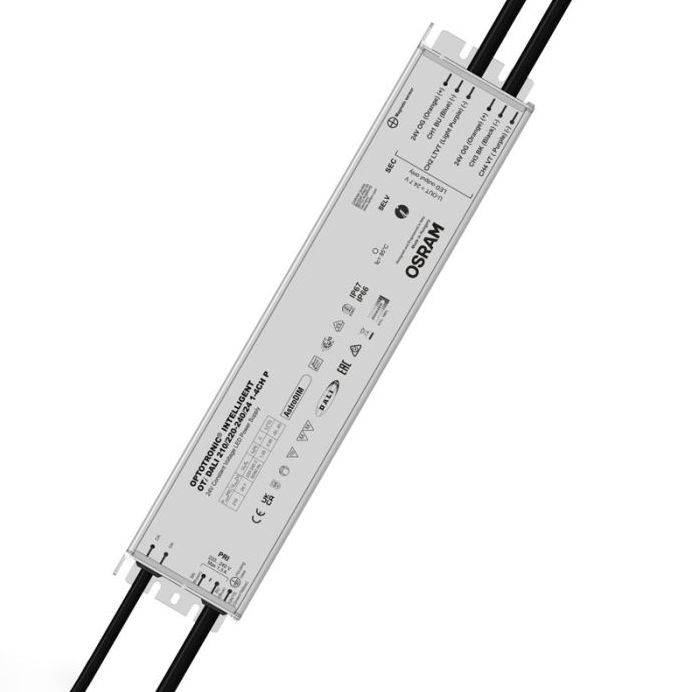

200w LED Driver with DALI power Supply OTi DALI-2 210/220-240/24 1-4 CH P

200w LED Driver with DALI power Supply OTi DALI-2 210/220-240/24 1-4 CH P

Product Overview

210W power can be ARBITRARILY distributed to 1 channel or across the 4 channels!

The OSRAM constant voltage power supplies with DALI enable you to maximize any design's potential and enjoy flicker-free light due to a high PWM frequency. These drivers are dimmable between 0.1% and 100% with TouchDIM and allow you to use from 1 to 4 channels while benefiting from DALI message detection of LED module failure.

Their slender form makes them ideal for tight spaces or linear luminaires—perfect for coves, corridors, handrails, or wall washing. They are suitable for 24V LED modules and for use with luminaires of protection classes I and II.

Product Family Benefits

• Long-lasting and high reliability
• Power can be arbitrarily distributed across 1 to 4 channels
• Suitable for installation under sunlight
• IP66/IP67 Salt mist resistant and DC functionality
• AstroDim functionality for automatic dimming and turn on/off

Areas of Application

• Public squares and architectural lighting
• Building facades and luminous signage
• Suitable for indoor and outdoor SELV installations
• Compatible with luminaires of protection class I

Electrical Data

• EAN: 4062172032087
• Nominal output power: 0–210 W *, **
• Min load per channel: 30 W
• Device power loss (Full load, 230 Vac, 50 Hz): 18.4 W
• Mains frequency: 50/60 Hz
• Power loss in stand-by mode: < 0.5 W
• Nominal line voltage: 220–240 V
• Nominal output voltage: 24.7 V
• Input voltage AC: 198–264 V
• Input voltage DC (with external fuse): 176–276 V
• Nominal current (Full load, 230 Vac, 50 Hz): 1.05 A
• Total Harmonic Distortion (THD): < 5%
• Power factor: > 0.95
• ECG Efficiency: 93% (Typical, Full load, 230 Vac, 50 Hz)
• Protection: Class I

Dimensions & Weight

• Mounting hole spacing (length): 326.0 mm
• Mounting hole spacing (width): 320.0 mm
• Product weight: 1415.00 g
• Height: 37.0 mm
• Width: 69.0 mm
• Length: 330.0 mm

Temperatures & Operating Conditions

• Ambient temperature range: -20°C to +60°C
• Max temperature at Tc test point: +85°C
• Storage temperature range: -40°C to +85°C
• Permitted relative humidity during operation: 5–85%

Capabilities

• Suitable for fixtures with protection class I
• Overheating protection: Auto recovery
• Overload protection: Auto recovery + Smart Power
• Short-circuit protection: Auto recovery
• No-load proof: Auto recovery
• Intended for no-load operation: No
• Output wire length: up to 50 m***
• Mains switching cycles: > 10,000
• Dimmable: Yes
• Number of channels: 4
• Dimming interface: DALI 2.0
• Dimming range: 0.1–100%
• Dimming method: PWM
• PWM frequency: 1 kHz

Lifespan

• Expected ECG lifetime (Ta = 60°C, Tc = 75°C, 10% failure rate, always ON): 30,000 h
• Expected ECG lifetime (Ta = 60°C, Tc = 75°C, 10% failure rate, 14 h ON and 10 h stand-by per day): 50,000 h
• Warranty: 5 years (10% cumulative failure)

Certificates & Standards

• Type of protection: IP66/IP67
• Standards:
  • Acc. to EN 61347-2-13
  • Acc. to EN 61547
  • Acc. to EN 55015
  • Acc. to EN 61000-3-2
  • Acc. to EN 61000-3-3
  • Acc. to EN 61347-1
  • Acc. to EN 62493
• Approval marks: BIS / CCC / CE / EAC / ENEC 10 / RCM / VDE / VDE-EMC

Notes

• *Lamp failure detection: Minimum load per channel that doesn't trigger open circuit detection is 30W
• **Power factor, harmonics, and EMI guaranteed between 80–210 W
• ***Output wire length: Up to 50 m
