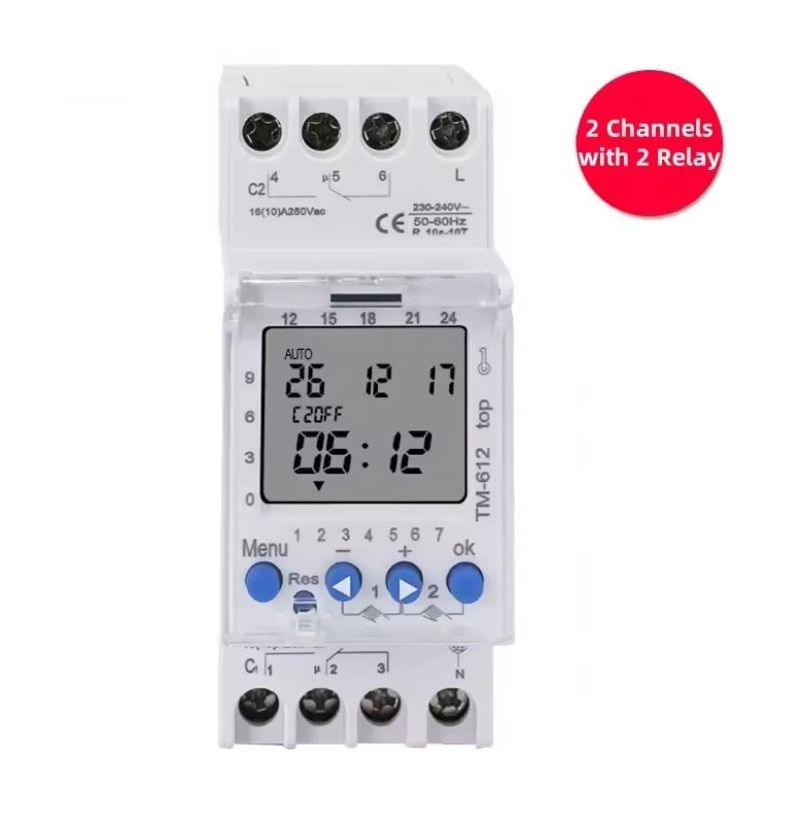

2 Channel Weekly Programmable Electronic Timer 220V Max 2x16A TM-612

2 Channel Weekly Programmable Electronic Timer 220V Max 2x16A TM-612

Description

TM612: 2 Channels 24hrs Time Clock with CE Approvals

The TM612 is a 2-channel programmable timer designed to automatically switch on and off various electric equipment at preset times over a week. It supports cyclical programming for daily or weekly schedules, with time intervals ranging from 1 minute to 168 hours.

This versatile timer is ideal for managing devices such as:

• Streetlights
• Neon lights (signs)
• Lamps
• Water heaters
• Air conditioners
• Billboards
• Electric cookers
• Boosters
• Sprayers
• Bottlers
• Preheaters
• Agriculture facilities
• Broadcasting equipment

The device features a replaceable 3V CR2032 backup battery, ensuring functionality during power failures. It is built with a low-consumption, high-accuracy CMOS chip, offering strong anti-jamming capabilities and ease of use. The TM612 conforms to IEC 60367 standards and is CE-certified.

Product Details

• 36mm DIN rail time switch for 7-day/24-hour programming
• Advanced pre-setting one week in advance
• 44 groups of on/off programs for daily and weekly schedules
• Automatic summer/winter time adjustment (EUROPE, Great Britain, USA/Canada)
• 44 memory pulse programs
• Two channels with volt-free output for accurate, to-the-minute control
• LED power ON/OFF indicator and high-contrast LCD display
• Displays year, month, day, hour, and minute
• Reset function and manual override
• Built-in lithium battery for power failure backup
• Product dimensions: 87 × 36 × 67 mm

Specifications

• Input Voltage: Universal 230Vac or 12Vac, 50/60Hz
• Output: 16A, SPDT @ 250Vac, volt-free output
• Installation: 35mm DIN rail or distribution board
• Power Consumption: 4.5 VA (MAX)
• Switching Contact: 1 changeover switch
• Programs: 44 on/off each day or week
• Timer Range: 1 minute to 168 hours
• Mini Interval: 1 minute
• Hysteresis: 2 sec/day (at 25°C)
• Rechargeable Battery: 3V
• Blackout Duration: 60 days
• Average Error: 1s/24h (at 25°C)
• Temperature Range: -20°C to +50°C
• Capacity: 16A, 250V AC
• Weight: 0.18kg

Package Includes

• 1 x Timer Switch TM612
• 1 x Manual
