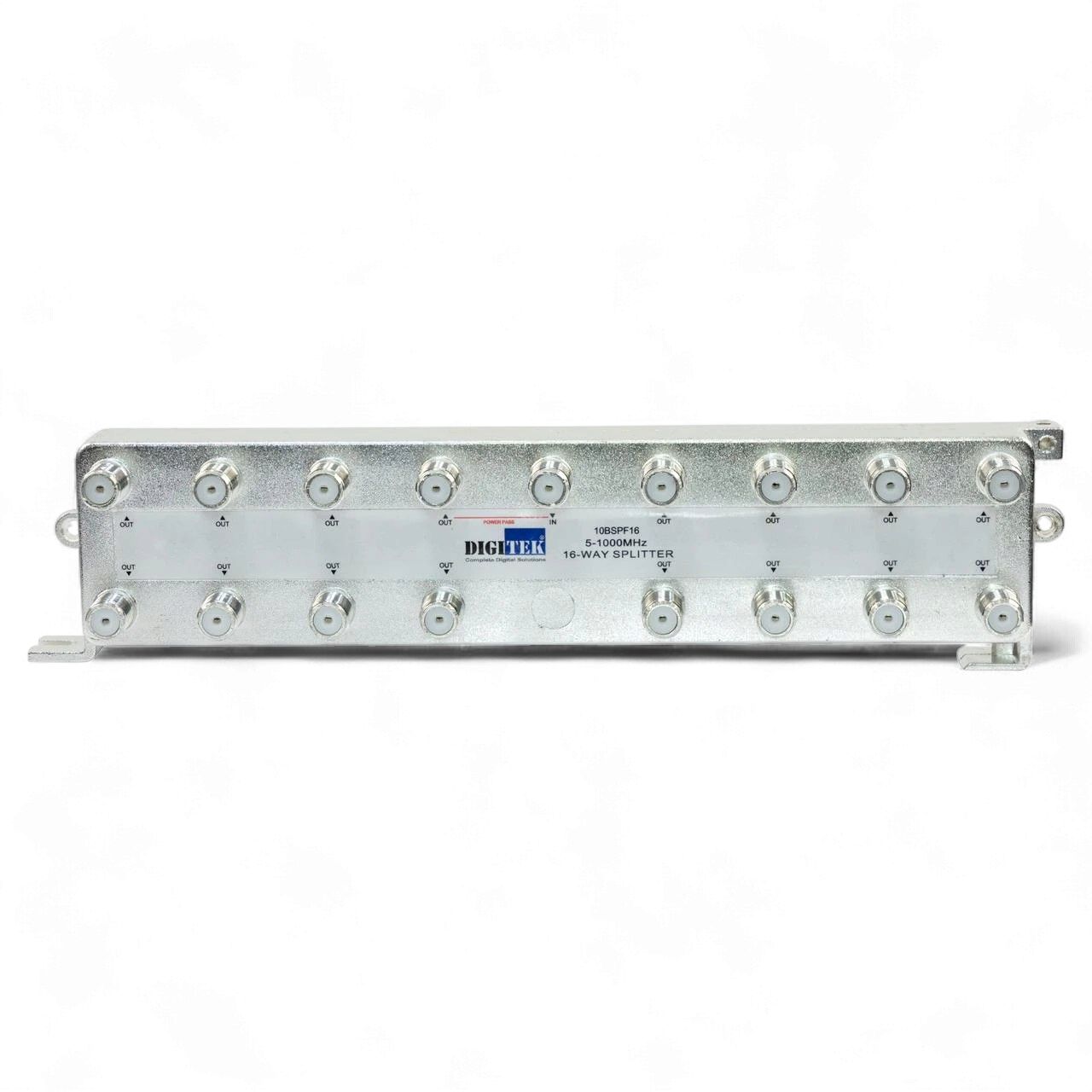

16 Way Splitter 5-1000MHz F Type Power Pass 10BSPF16

16 Way Splitter 5-1000MHz F Type Power Pass 10BSPF16

Upgrade your home or commercial TV distribution setup with the 16-Way 5-1000MHz F-Type Splitter (10BSPF16). Engineered for both professional installers and DIY enthusiasts, this splitter delivers superior signal performance across a wide frequency range. Its zinc die-cast, tin-plated housing ensures durability and shielding against interference, while the lightweight and compact design makes installation simple. Equipped with 16 F-type female ports and a 1-leg power pass, it supports Free-to-Air (FTA) setups with minimal signal loss and high isolation. Perfect for large-scale multi-room TV distribution, this splitter combines advanced micro-strip circuitry with robust construction for unmatched reliability.

Whether you’re setting up multiple TVs in a home, office, or commercial environment, the 10BSPF16 ensures stable, high-quality signal distribution with low insertion loss and excellent return loss across all frequencies from 5–1000MHz. Complete with mounting and earth screws, this splitter is ready to install straight out of the box.

Features:

• Zinc die-cast housing, tin-plated for durability and excellent shielding
• Lightweight and compact design for easy handling
• Simple installation with two edge hole sites
• Mounting screws and earth screw included for secure setup
• Housing earth point supplied for proper grounding
• Screening factor: 5–1000MHz ≥100dB, ensuring low interference
• Micro-strip circuit design for optimal performance
• All ports F-Type Female connectors (75Ω)
• Frequency range: 5–1000MHz
• Insertion loss: ≤16.0dB across full frequency range
• Mutual isolation: ≥22dB for clear signal separation
• Free-to-Air (FTA) compatible
• Single-port power pass (24V, 0.8A MAX)
• Supplied in colour box with label
• 1-year manufacturer warranty
